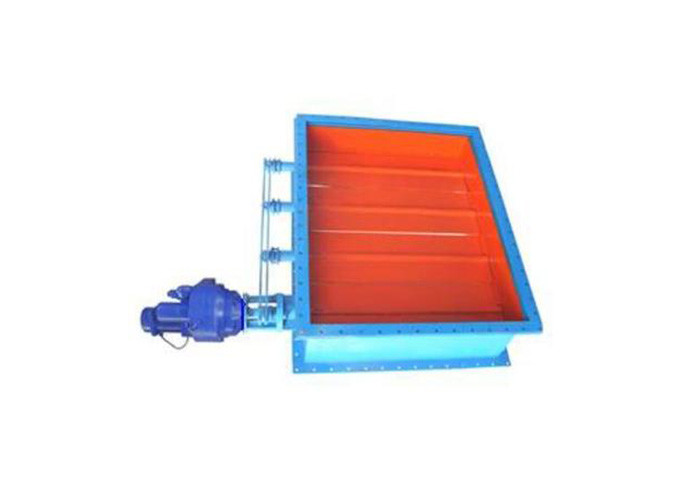

ZKCVB-0.05 Type Electric Square Louvered Damper

ZKCVB-0.05 Type Electric Square Louvered Damper

ZKCVB-0.05 Type Electric Square Louvered Damper

Product Details:

Place of Origin: TIANJIN CHINA
Brand Name: TIANJIN BELL
Certification: ISO9001 CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: USD 100-900 PIECE
Packaging Details: plywood case
Delivery Time: 10-20 days
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 1000pieces per month
Contact Now
Detailed Product Description

Product Features
· The series of electric blinds Damper with DKJ series electric actuators, easy installation and maintenance, economical and practical
· Blinds valve open and close has a small torque, sensitive, reliable performance, large diameter, light weight advantages.
· Adjustment louver valve opening degree can be controlled size of the wind.

The main parameters of the actuator
·Input, output signal: 4~20mA DC or 0~10mA DC;
·Input channel resistance: 250ohms;
·The basic error:±2.5%;
·Dead :≤3%(could adjusted according to system requirements);
·Power supply voltage :single phase 220V 50Hz;
·Working environment temperature: -10℃~+55℃
· Working environment humidity: ≤95%, ambient air does not contain corrosive properties;


Dimensions

ZKCVB-0.05 Type Electric Square Louvered Damper

L A1 A2 A3 A4 A5 A6 H H1 L1 X Y n-d Electric Actuator Supporting fan model
Model TorqueNm
160 128 160 182 96 126 148 566 462 245 4 3 14-φ7

DKJ-

2100

100 9-19
144 176 198 104 135 160 578 468
160 192 214 115 150 171 590 476
179 212 233 129 162 185 608 480
202 236 256 145 180 204 622 490
160 196 228 250 128 165 184 602 480 4 3 14-φ7 9-26
221 252 275 144 177 200 614 484
245 284 299 160 192 216 632 496
274 305 238 179 212 235 732 585 5 4 18-φ7
309 340 365 202 236 261 648 518
160 227 270 293 293 204 232 620 504 4 3 14-φ7 9-19
256 296 322 184 228 250 670 514
288 330 354 207 252 276 994 526 5 4 18-φ4
180 302 360 386 230 275 299 716 537
359 415 448 258 316 350 768 563 5 4 18-φ12

DKJ-

3100

250
400 456 489 288 314 380 790 570 300 6 4 20-φ12
448 516 557 322 405 488 858 604 6 5 22-φ12
512 574 621 368 440 484 892 620 7 5 24-φ12
200 384 390 414 227 272 196 706 528 6 4 20-φ12 9-26
392 432 458 256 300 323 736 543
441 482 507 288 330 357 758 550
490 528 556 320 356 389 799 575
160 504 600 638 358 410 450 860 605 8 5 26-φ12
613 664 702 400 456 492 902 626 8 6 28-φ12
686 747 795 448 516 564 974 662 9 6 30-φ12
784 840 893 512 588 628 1103 759 365 10 7 34-φ12

DKJ-

4100

600
180 256 290 314 199 231 254 671 514 245 4 3 14-φ7

DKJ-

2100

100 Y5-48
200 324 360 382 252 284 308 718 534 300 5 4 18-φ7

DKJ-

3100

250
409 443 465 315 348 371 782 566 5 4 18-φ7
520 580 632 400 462 509 919 635 5 4 18-φ15
220 655 728 771 504 570 613 994 687 7 5 24-φ15
160 815 888 935 627 690 737 1183 814 365 8 6 28-φ15

DKJ-

4100

600
160 228 256 277 196 228 250 667 511 245 4 4 16-φ7

DKJ-

2100

100 4-72
256 288 300 224 256 278 996 528
298 320 341 252 284 306 716 532
180 320 355 374 280 315 336 747 554 300 6 4 20-φ7

DKJ-

3100

250 4-72
360 396 414 315 350 371 782 566
400 435 456 350 385 406 816 592 7 4 24-φ7
180 480 511 536 420 455 476 886 618 300 6 6 24-φ4
200 640 700 746 560 625 669 1079 715 5 5 20-φ15
220 800 860 900 700 765 809 1219 785 365 5 5 20-φ15

DKJ-

4100

600
240 960 1008 1066 840 900 949 1434 919 365 6 6 42-φ15
260 1280 1340 1380 1120 1188 1232 1702 1056 424 10 9 38-φ15

DKJ-

5100

1600
320 1600 1672 1735 1400 1476 1558 2128 1329 560 11 9 40-φ15

DKJ-

6100A

2500
220 720 777 826 520 580 629 1104 760 365 7 5 24-φ15

DKJ-

4100

600 Y4-73
220 810 868 916 586 650 649 2164 810
240 900 959 1006 650 710 759 1205 836
260 990 1048 1069 713 780 824 1234 862 8 6 28-φ15
1080 1144 1186 780 846 887 1279 911
1260 1336 1389 910 990 1042 1334 963 424

DKJ-

5100

1600
320 1540 1312 1569 1010 1120 1172 1642 994 560 9 7 32-φ15

DKJ-

6100A

2500
1620 1110 1779 1170 1260 1338 1802 1156
420 1800 1890 1959 1300 1386 1462 2052 1253

DKJ-

6100

4000
1980 2070 2139 1430 1560 1596 2186 1385 10 8 36-φ15
450 2250 2376 2459 1650 1759 1841 2601 1581 12 9 42-φ15
2520 2660 2732 1805 1905 2036 2736 1718 14 10 48-φ15
