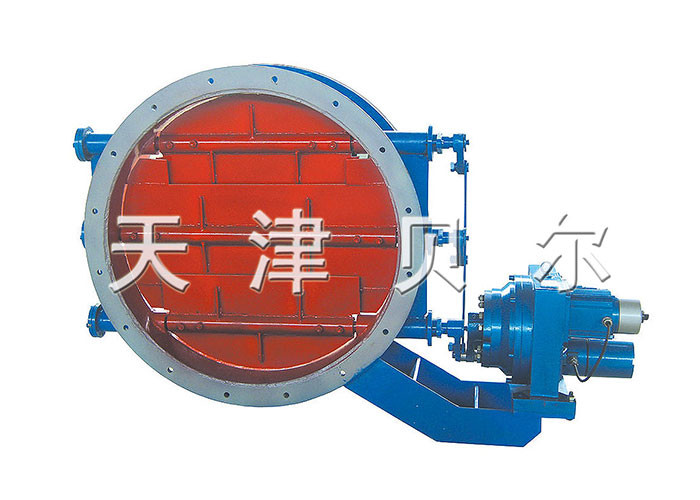

ZKYVB-0.05 Type Electric Louver Round Damper Valve DN320-DN4000
Product Details:
| Place of Origin: |
TIANJIN CHINA |
| Brand Name: |
TIANJIN BELL |
| Certification: |
ISO9001 CE |
| Model Number: |
ZKYVB-0.05 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 Piece |
| Price: |
USD 200-5000Piece |
| Packaging Details: |
Steel bracket package or plywood case |
| Delivery Time: |
25-45days |
| Payment Terms: |
T/T,L/C,Paypal,Western Union |
| Supply Ability: |
1000Pieces per month |
Contact Now
Detailed Product Description
| Size: |
DN320-DN4000 |
Material: |
Cast Iron |
| Working Temperature: |
-30-250℃ |
Nominal Pressure: |
0.05MPa |
| Voltage: |
220VAC 50HZ,380VAC 50HZ |
Input/Output Signal: |
0-10mA Or 4-20mA |
| Color: |
Blue,Red,Green,etc Customization |
Medium: |
Flue Gas, Exhaust Gas, Air, Dusty Gas |
| Connect: |
Flange |
Standard: |
ASTM BS DIN ISO JIS |
Product Features
· This series Electric Louver damper valve install with our DKJ series electric actuators,Easy installation and maintenance, economical and practical.
· Louver damper valve has a small opening and closing torque,Quick action,Reliable performance,Large diameter,Light weight advantages.
· Adjust Louver damper Valve opening degree,could control the size of the wind
The main parameters of the actuator
·Input, output signal: 4 ~ 20mA DC or 0 ~ 10mA DC;；
·Input channel resistance: 250 ohms；
·The basic error: ± 2.5%；
·Dead: ≤3% (adjustment according to system requirements);；
·Power supply voltage: single phase 220V 50Hz;
·Working temperature: -10 ℃ ~ + 55 ℃
·Operating humidity: ≤95%, ambient air does not contain corrosive properties;
Dimensions
| DN |
D1 |
D |
L |
L1 |
L2 |
L3 |
n-d |
| 320 |
367 |
350 |
180 |
367 |
320 |
350 |
8-φ7 |
| 360 |
416 |
394 |
180 |
416 |
360 |
394 |
8-φ7 |
| 400 |
472 |
450 |
180 |
472 |
400 |
450 |
12-φ10 |
| 450 |
512 |
490 |
180 |
512 |
450 |
490 |
12-φ10 |
| 500 |
620 |
550 |
180 |
620 |
500 |
550 |
12-φ10 |
| 560 |
680 |
620 |
200 |
680 |
560 |
620 |
16-φ12 |
| 600 |
720 |
660 |
200 |
720 |
600 |
660 |
16-φ12 |
| 630 |
750 |
690 |
200 |
750 |
630 |
690 |
16-φ12 |
| 650 |
770 |
710 |
200 |
770 |
650 |
710 |
16-φ12 |
| 700 |
820 |
760 |
200 |
820 |
700 |
760 |
16-φ15 |
| 710 |
830 |
770 |
200 |
830 |
710 |
770 |
16-φ15 |
| 800 |
920 |
880 |
220 |
920 |
800 |
880 |
16-φ15 |
| 900 |
1040 |
990 |
220 |
1040 |
900 |
990 |
16-φ15 |
| 1000 |
1145 |
1085 |
260 |
1145 |
1000 |
1085 |
24-φ15 |
| 1100 |
1245 |
1195 |
260 |
1245 |
1100 |
1195 |
24-φ15 |
| 1120 |
1265 |
1215 |
280 |
1265 |
1120 |
1215 |
24-φ15 |
| 1200 |
1350 |
1290 |
280 |
1350 |
1200 |
1290 |
24-φ15 |
| 1250 |
1400 |
1340 |
280 |
1400 |
1250 |
1340 |
28-φ15 |
| 1400 |
1550 |
1490 |
320 |
1550 |
1400 |
1490 |
28-φ15 |
| 1500 |
1650 |
1590 |
320 |
1650 |
1500 |
1590 |
28-φ15 |
| 1600 |
1750 |
1685 |
320 |
1750 |
1600 |
1685 |
28-φ15 |
| 1700 |
1850 |
1785 |
320 |
1850 |
1700 |
1785 |
28-φ15 |
| 1800 |
1955 |
1895 |
420 |
1955 |
1800 |
1895 |
32-φ15 |
| 1900 |
2055 |
1995 |
420 |
2055 |
1900 |
1995 |
32-φ15 |
| 2000 |
2155 |
2095 |
420 |
2155 |
2000 |
2095 |
32-φ15 |
| 2100 |
2255 |
2195 |
450 |
2255 |
2100 |
2195 |
36-φ19 |
| 2120 |
2275 |
2215 |
450 |
2275 |
2120 |
2215 |
36-φ19 |
| 2200 |
2355 |
2295 |
450 |
2355 |
2200 |
2295 |
36-φ19 |
| 2300 |
2455 |
2395 |
450 |
2455 |
2300 |
2395 |
36-φ19 |
| 2500 |
2660 |
2600 |
450 |
2660 |
2500 |
2600 |
36-φ19 |
| 2650 |
2820 |
2750 |
450 |
2820 |
2650 |
2750 |
36-φ19 |
| 2800 |
2970 |
2900 |
500 |
2970 |
2800 |
2900 |
38-φ23 |
| 3000 |
3190 |
3120 |
500 |
3190 |
3000 |
3120 |
38-φ23 |
| 3200 |
3390 |
3320 |
500 |
3390 |
3200 |
3320 |
40-φ23 |
| 3350 |
3540 |
3470 |
500 |
3540 |
3350 |
3470 |
60-φ26 |
| 3450 |
3640 |
3570 |
600 |
3640 |
3450 |
3570 |
60-φ26 |
| 3550 |
3740 |
3670 |
600 |
3740 |
3550 |
3670 |
60-φ26 |
| 3650 |
3840 |
3770 |
600 |
3840 |
3650 |
3770 |
60-φ26 |
| 3750 |
3930 |
3870 |
600 |
3940 |
3750 |
3870 |
70-φ26 |
| 4000 |
4200 |
4130 |
600 |
4040 |
4000 |
3970 |
70-φ26 |
