Electric Sleeve Control Valve--Introduced BELLAZM  Type DN25-DN400

Electric Sleeve Control Valve--Introduced BELLAZM  Type DN25-DN400

    • Electric Sleeve Control Valve--Introduced BELLAZM  Type DN25-DN400
    • Electric Sleeve Control Valve--Introduced BELLAZM  Type DN25-DN400
    • Electric Sleeve Control Valve--Introduced BELLAZM  Type DN25-DN400
  • Electric Sleeve Control Valve--Introduced BELLAZM  Type DN25-DN400

    Product Details:

    Place of Origin: TIANJIN CHINA
    Brand Name: TIANJIN BELL
    Certification: Certification ISO9001,Certification CE
    Model Number: BELL-AZM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: USD 100-900 PIECE
    Packaging Details: plywood case
    Delivery Time: 10-20 days
    Payment Terms: T/T L/C Western Union Paypal
    Supply Ability: 1000 pieces per month
    Contact Now
    Detailed Product Description
    Body Material: Cast Iron, Cast Steel, Caststainless Steel, Etc. Pressure Rating: 1.6Mpa 4.0Mpa 6.4Mpa
    Connection: Flange(screw,weld,etc) Temperature Range: The Normal Temperature Type -20-230 ℃ Thermal Fin Type-60-450 ℃
    Action Form: Electrical Power On Or Off Flow Characteristics: Linear Or Equal Percentage
    Leakage: Single-seat Valve: 0.5% × Rated Kv(IV) Input/Output: 4-20mA
    Standard: ANSI,ASTM,BS,DIN,JIS Certification: ISO9001,CE
    Type: Single Seat/Double Seat/Sleeve Power Supply: 220VAV,380vAC,440VAc,etc



    Product features:

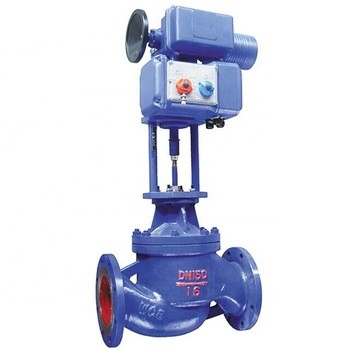

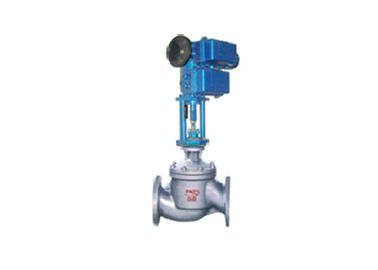

    · BELLAZM series Sleeve control valve with BELL straight stroke electric actuator,ajustment of high precision and has a fault alarm function.
    ·According to user's needs, BELLAZM series sleeve control valve can also increase the inplace panel display and remote control settings.
    · The leakage of sleeve control valve is small and it can withstand greater pressure,so it is an ideal modulating valve.


    The main parameters:
    Body material: cast iron, cast steel, caststainless steel, etc.
    Pressure rating: 1.6Mpa 4.0Mpa 6.4Mpa
    Connection: flange connection according toJB79-59
    Temperature range: room temperature type -20-230 ℃ thermal fin type-60-450 ℃
    Action form: electrical power on or off
    Flow characteristics: Equal percentage, linear
    Leakage: single-seat valve: 0.5% × rated Kv


    The main parameters of the actuator:
    · Input, output signal: 4-20mA DC;
    · Input channel resistance: 250 ohms;
    · Basic error: ± 1%;
    · Dead: 0.5% --3% (adjusted according to system requirements);
    · Power supply voltage: Three-phase 380V 50Hz single phase 220V 50Hz (other power can be customized);
    · Working temperature: Integrated type -10 ℃ ~ + 55 ℃, discrete type -25 ℃ ~ + 70 ℃;
    · Operating humidity: ≤85%, ambient air does not contain corrosive properties;
    · Protection class: IP65, bus type, intelligent IP67;
    · Communication Interface: bus line with international standard protocol PROFIBUS-DP.


    BELLAZM, ZAZM sleeve control valve specifications table

    Nominal diameter

    DN

    25 40 50 65 80 100 125 150 200 250 300 350 400

    Rated flow coefficient

    Kv

    11/10 27/25 44/40 69/63 110/100 176/160 275/250 440/400 690/630 940/850 1200/1050 1400/1225 1600/1400

    Nominal pressure

    PN MPa

    1.6 4 6.4
    match DKJ actuator DKZ-4200 DKZ-4300 DKZ-5400 DKZ-5500 DKZ-5600
    match BELL actuator BELL-A+Z64 BELL-A+Z160
    Rated travel mm 16 25 40 60 100
    Flow characteristic Line equal percentage
    Action mode volt on volt off
    Temperature range normal temperature:-20~200℃ thermal fin type:-60~450℃



    About descriptions of actuator, please refer to "Valve Actuator" section.


    Size chart (with BELL straight stroke electric actuator)

    Electric Sleeve Control Valve--Introduced BELLAZM  Type DN25-DN400

    Nominal diameter DN 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
    L 1.6MPa 181 184 184 222 254 276 298 352 415 451 600 650 740 850 950
    4.0MPa 194 197 197 235 267 292 317 368 425 473 610 670 770 850 950
    6.4MPa 206 210 210 251 286 311 337 394 435 508 650 690 800 850 950
    H Normal temperature 641 655 661 743 758 799 802 806 857 865 904 954 1010 1031 1101
    thermal Fin type 777 791 797 871 886 962 965 969 1054 1062 1101 1151 1210 1231 1301
    B 407 407 407 460 460 460 460 460 460 460 460 460 460 480 480
    C 280 280 280 280 280 280 280 280 280 280 280 280 280 280 280



    Electric Sleeve Control Valve--Introduced BELLAZM  Type DN25-DN400Electric Sleeve Control Valve--Introduced BELLAZM  Type DN25-DN400Electric Sleeve Control Valve--Introduced BELLAZM  Type DN25-DN400
