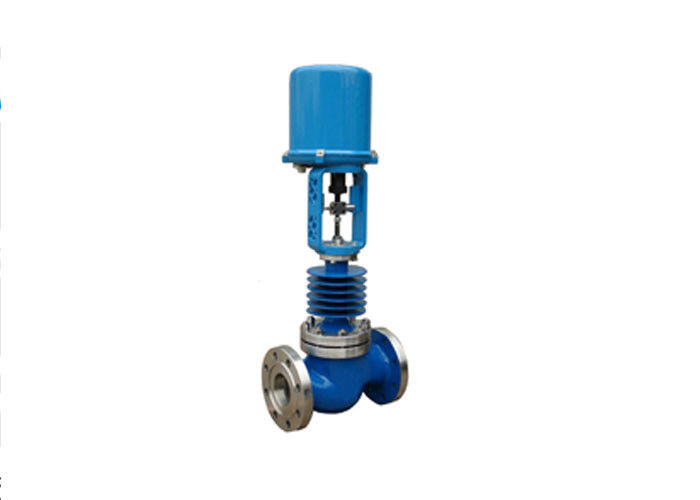

High temperature electric control valve

Product Details:

Place of Origin:	TIANJIN CHINA
Brand Name:	TIANJINBELL
Certification:	ISO9001 CE
Model Number:	ZDLP

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	USD 600-2000 Piece
Packaging Details:	Plywood case
Delivery Time:	15-30days
Payment Terms:	T/T,L/C,Western Union,Paypal
Supply Ability:	1000 pieces

Contact Now

Detailed Product Description

Material:	Cast Iron, Casting Steel,Stainless Steel	Temperature Of Media:	-20℃ ~450℃ Based On Material And Type
Pressure:	PN16~64; ANSI 150~300lb; JIS 10K,etc	Power:	Electric
Media:	:Fresh Water, Sewage, Sea Water, Air, Steam, Acids, Oil, Alkali,etc	Port Size:	DN20-400 (1 1/2"~16")
Structure:	Control	Connection Type:	Thread Type, Welding Type, Flange Type
Actuator Model:	3810L,3610L,BELL Series, DKZ Series,BZ Series	Control Signal Type:	0-10mA,4-20mA,0-5V DC,0-10V DC
Protection Class:	IP65, IP67,IP68,etc	Packing Material:	Flexible Graphite, PTFE
Voltage:	AC/DC 220V, 380V, 400V, 440V Or To Order, 50HZ/60HZ	Standard Range:	ANSI, JIS, DIN, BS, GB,etc
Color:	To Order

ZDLP precision small electronic single seat control valve, with3810L type (or PSL series) direct stroke electronic electric actuator and precision small single seat valve.Including feeding function
ZDLP electric control valve can accept 4-20ma or 1-5v ·DC standard signal, the current signal into the corresponding linear displacement, automatically control the valve opening, to reach the pipeline continuous adjustment of process parameters such as pressure, flow, temperature and liquid level of internal fluid.
It is suitable for many places with strict requirements on leakage, low pressure difference before and after valve, certain viscosity and small amount of fiber medium.

Electric control valve outline:

High temperature electric control valve
