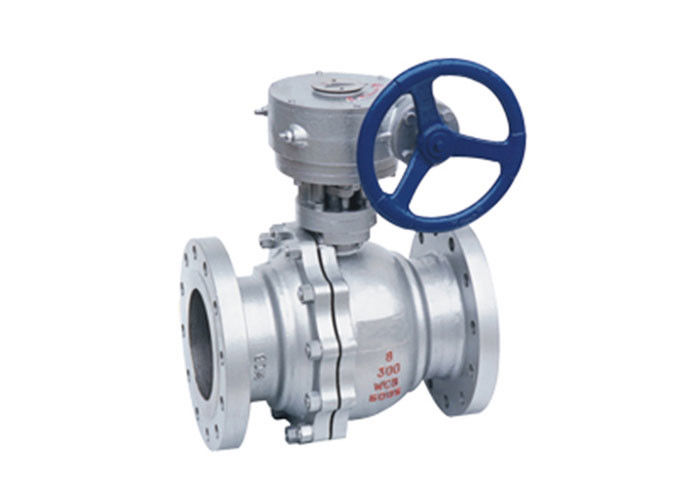

BWAQ Worm Gear V Port Ball Valve

BWAQ Worm Gear V Port Ball Valve

BWAQ Worm Gear V Port Ball Valve

Product Details:

Place of Origin: TIANJIN CHINA
Brand Name: TIANJIN BELL
Certification: ISO9001 CE
Model Number: BWAQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: USD100-500 PIECE
Packaging Details: PLYWOOD CASE
Delivery Time: 5-10 DAYS
Payment Terms: T/T L/C
Supply Ability: 1000 PIECES PER MONTH
Contact Now
Detailed Product Description
Place Of Origin: Tianjin, China (Mainland) Application: General
Material: Casting Steel / WCB, Carbon Steel, Stainless Steel Temperature Of Media: -20℃~350℃ Based On Material
Pressure: PN16,25,40;150lb,300lb;10K,20K,etc Power: Manual
Media: Water,oil,gas, Steam And Some Corrosive Liquid Port Size: DN50-700(2"~28")
Structure: Ball Connection Type: Flange Type
Connecting Flange: GB/T9113,JB/T79,ANSI B16.5 B16.47 Face To Face Dimension: GB/T12221,API6D,ANSI B16.10
Design Standards: GB/T12237,API6D,ANSI B16.34 Seal Type: PTFE / Teflon / PPL / Metal Seal
Flange Type: RF, FF,etc Testing And Inspection: GB/T9092,API6D,API598
Standard Range: API, ANSI,DIN,BS,JIS,GB,etc Color: To Order
Standard Or Nonstandard: Standard

Product Features:
·V type ball valve are fixed and single seat sealing ball valves.
·Its regulation performance is the best in ball valve. Flow characteristic is equal percentage, with adjustable ratio of 100:1.
·Ball valve rotate 90 ° to complete fully open/close fast. Low friction coefficient and small operating torque .
·Valve good sealing, a variety of the seat material, wide adaptation.
·Worm gear operation, large output torque. It can control a large ball valve.
·There is shearing action between v-shaped incision and metal seat. It’s especially suitable for fiber, tiny solid particles and slurry medium.


Spare parts Material

Spare parts Material
Carbon steel Stainless steel
GB ASTM GB ASTM
Body/Bonet WCB A216-WCB ZG1Cr18Ni9Ti
ZG1Cr18Ni12Mo2Ti		 A351-CF8
A351-CF8M
A351-CF3
A351-CF3M
Ball 2Cr13
1Cr18Ni9		 A276-304
Stem 2Cr13 276-410 1Cr18Ni9Ti
1Cr18Ni12Mo2Ti		 A276-304；A276-304L
A276-316；A276-316L
Seal ring PTFE/Nylon/fill the F4 /carbon fiber/2Cr13+STL
Packing/Gasket PTFE/Asbestos packing/flexible graphite
Nut 35 A105-1035 Stainless steel
Double end bolt 35CrMoA A193-B7 Stainless steel



Dimension

BWAQ Worm Gear V Port Ball Valve



Rating Nominal diameter, DN L d D D1 D2 b f Z-Φdo H
PN16 25 150 25 115 85 65 14 2 4-14 90
32 165 32 135 100 78 16 2 4-18 107
40 180 38 145 110 85 16 3 4-18 127
50 200 51 160 125 100 16 3 4-18 140
65 220 64 180 145 120 18 3 4-18 164
80 250 76 195 160 135 20 3 8-18 177
100 280 102 215 180 155 20 3 8-18 206
125 320 127 245 210 185 22 3 8-18 292
150 360 152 280 240 210 24 3 8-23 320
200 400 203 335 295 265 26 3 12-23 365
PN25 25 150 25 115 85 65 14 2 4-14 90
32 165 32 135 100 78 16 2 4-18 107
40 180 38 145 110 85 16 3 4-18 127
50 200 51 160 125 100 20 3 4-18 140
65 220 64 180 145 120 22 3 8-18 164
80 250 76 195 160 135 22 3 8-18 177
100 320 102 230 190 160 24 3 8-23 206
125 360 127 270 220 188 28 3 8-25 292
150 400 152 300 250 218 30 3 8-25 320
200 550 203 360 310 278 34 3 12-25 365
PN40 25 165 25 115 85 65 16 2 4-14 90
32 178 32 135 100 78 18 2 4-18 107
40 190 38 145 110 85 18 3 4-18 127
50 220 51 160 125 100 20 3 4-18 140
65 250 64 180 145 120 22 3 8-18 164
80 280 76 195 160 135 22 3 8-18 177
100 320 102 230 190 160 24 3 8-23 206
125 400 127 270 220 188 28 3 8-25 292
150 400 152 300 250 218 30 3 8-25 320
200 550 203 375 320 282 38 3 12-30 365
