Place of Origin: | TIANJIN CHINA |
Brand Name: | TIANJIN BELL |
Certification: | ISO9001 CE |
Model Number: | +BSAQ |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | USD 50-100 PIECE |
Packaging Details: | PLYWOOD CASE |
Delivery Time: | 5-10 DAYS |
Payment Terms: | T/T L/C |
Supply Ability: | 1000 PIECES PER MONTH |
Place Of Origin: | Tianjin, China (Mainland) | Application: | General |
---|---|---|---|
Material: | Casting Steel / WCB, Carbon Steel, Stainless Steel | Temperature Of Media: | -20℃~350℃ Based On Material |
Pressure: | PN16,25,40;150lb,300lb;10K,20K,etc | Power: | Manual |
Media: | Water,oil,gas, Steam And Some Corrosive Liquid | Port Size: | DN50-700(2"~28") |
Structure: | Ball | Connection Type: | Flange Type |
Connecting Flange: | GB/T9113,JB/T79,ANSI B16.5 B16.47 | Face To Face Dimension: | GB/T12221,API6D,ANSI B16.10 |
Design Standards: | GB/T12237,API6D,ANSI B16.34 | Seal Type: | PTFE / Teflon / PPL / Metal Seal |
Flange Type: | RF, FF,etc | Testing And Inspection: | GB/T9092,API6D,API598 |
Standard Range: | API, ANSI,DIN,BS,JIS,GB,etc | Color: | To Order |
Standard Or Nonstandard: | Standard |
Product Features:

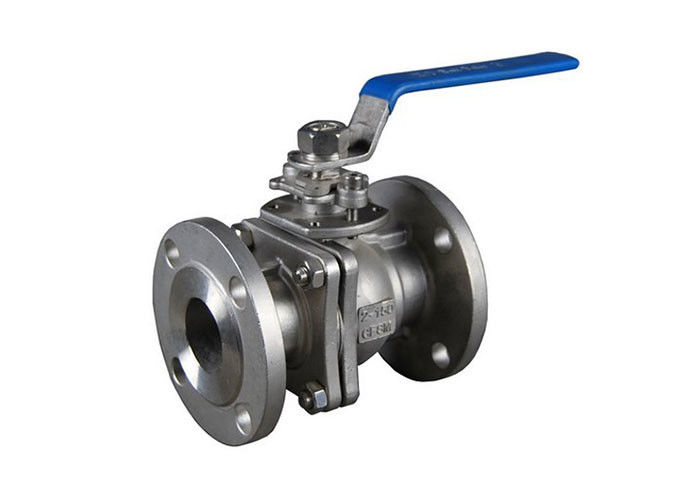

·V type ball valve are fixed and single seat sealing ball valves.
·Its regulation performance is the best in ball valve. Flow characteristic is equal percentage, with adjustable ratio of 100:1.
·Ball valve rotates 90 ° to complete fully open/close fast. Low friction coefficient and small operating torque .
·Handle operation, the valve have lock hole in full open/close position, to ensure that the valve is in the right place.
·There is shearing action between v-shaped incision and metal seat. It’s especially suitable for fiber, tiny solid particles and slurry medium.
Spare parts Material
Spare parts | Material | |||
Carbon steel | Stainless steel | |||
GB | ASTM | GB | ASTM | |
Body/Bonet | WCB | A216-WCB | ZG1Cr18Ni9Ti ZG1Cr18Ni12Mo2Ti |
A351-CF8 A351-CF8M A351-CF3 A351-CF3M |
Ball | 2Cr13 1Cr18Ni9 |
A276-304 | ||
Stem | 2Cr13 | 276-410 | 1Cr18Ni9Ti 1Cr18Ni12Mo2Ti |
A276-304;A276-304L A276-316;A276-316L |
Seal ring | PTFE/Nylon/fill the F4 /carbon fiber/2Cr13+STL | |||
Packing/Gasket | PTFE/Asbestos packing/flexible graphite | |||
Nut | 35 | A105-1035 | Stainless steel | |
Double end bolt | 35CrMoA | A193-B7 | Stainless steel |
Dimension
Rating | Nominal diameter, DN | L | d | D | D1 | D2 | b | f | Z-Φdo | H | E |
PN16 | 25 | 150 | 25 | 115 | 85 | 65 | 14 | 2 | 4-14 | 90 | 170 |
32 | 165 | 32 | 135 | 100 | 78 | 16 | 2 | 4-18 | 107 | 200 | |
40 | 180 | 38 | 145 | 110 | 85 | 16 | 3 | 4-18 | 127 | 250 | |
50 | 200 | 51 | 160 | 125 | 100 | 16 | 3 | 4-18 | 140 | 250 | |
65 | 220 | 64 | 180 | 145 | 120 | 18 | 3 | 4-18 | 164 | 350 | |
80 | 250 | 76 | 195 | 160 | 135 | 20 | 3 | 8-18 | 177 | 350 | |
100 | 280 | 102 | 215 | 180 | 155 | 20 | 3 | 8-18 | 206 | 420 | |
125 | 320 | 127 | 245 | 210 | 185 | 22 | 3 | 8-18 | 292 | 700 | |
150 | 360 | 152 | 280 | 240 | 210 | 24 | 3 | 8-23 | 320 | 1000 | |
200 | 400 | 203 | 335 | 295 | 265 | 26 | 3 | 12-23 | 365 | 1300 | |
PN25 | 25 | 150 | 25 | 115 | 85 | 65 | 14 | 2 | 4-14 | 90 | 170 |
32 | 165 | 32 | 135 | 100 | 78 | 16 | 2 | 4-18 | 107 | 200 | |
40 | 180 | 38 | 145 | 110 | 85 | 16 | 3 | 4-18 | 127 | 250 | |
50 | 200 | 51 | 160 | 125 | 100 | 20 | 3 | 4-18 | 140 | 250 | |
65 | 220 | 64 | 180 | 145 | 120 | 22 | 3 | 8-18 | 164 | 350 | |
80 | 250 | 76 | 195 | 160 | 135 | 22 | 3 | 8-18 | 177 | 350 | |
100 | 320 | 102 | 230 | 190 | 160 | 24 | 3 | 8-23 | 206 | 420 | |
125 | 360 | 127 | 270 | 220 | 188 | 28 | 3 | 8-25 | 292 | 700 | |
150 | 400 | 152 | 300 | 250 | 218 | 30 | 3 | 8-25 | 320 | 1000 | |
200 | 550 | 203 | 360 | 310 | 278 | 34 | 3 | 12-25 | 365 | 1300 | |
PN40 | 25 | 165 | 25 | 115 | 85 | 65 | 16 | 2 | 4-14 | 90 | 170 |
32 | 178 | 32 | 135 | 100 | 78 | 18 | 2 | 4-18 | 107 | 200 | |
40 | 190 | 38 | 145 | 110 | 85 | 18 | 3 | 4-18 | 127 | 250 | |
50 | 220 | 51 | 160 | 125 | 100 | 20 | 3 | 4-18 | 140 | 250 | |
65 | 250 | 64 | 180 | 145 | 120 | 22 | 3 | 8-18 | 164 | 350 | |
80 | 280 | 76 | 195 | 160 | 135 | 22 | 3 | 8-18 | 177 | 350 | |
100 | 320 | 102 | 230 | 190 | 160 | 24 | 3 | 8-23 | 206 | 420 | |
125 | 400 | 127 | 270 | 220 | 188 | 28 | 3 | 8-25 | 292 | 700 | |
150 | 400 | 152 | 300 | 250 | 218 | 30 | 3 | 8-25 | 320 | 1000 | |
200 | 550 | 203 | 375 | 320 | 282 | 38 | 3 | 12-30 | 365 | 1300 |
