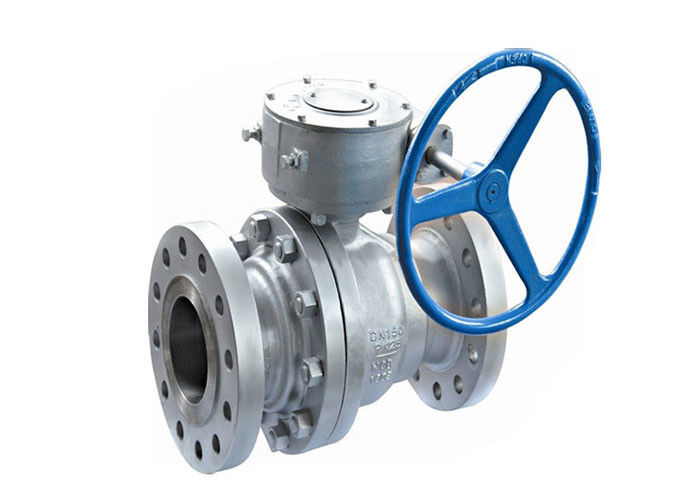

BWAQ Worm Gear O Port Ball Valve+BWAQ

BWAQ Worm Gear O Port Ball Valve+BWAQ

BWAQ Worm Gear O Port Ball Valve+BWAQ

Product Details:

Place of Origin: TIANJIN CHINA
Brand Name: TIANJIN BELL
Certification: ISO9001 CE
Model Number: BWAQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: USD100-500 PIECE
Packaging Details: PLYWOOD CASE
Delivery Time: 5-10 DAYS
Payment Terms: T/T L/C
Supply Ability: 1000 PIECES PER MONTH
Contact Now
Detailed Product Description
Place Of Origin: Tianjin, China (Mainland) Application: General
Material: Casting Steel / WCB, Carbon Steel, Stainless Steel Temperature Of Media: -20℃~350℃ Based On Material
Pressure: PN16,25,40;150lb,300lb;10K,20K,etc Power: Manual
Media: Water,oil,gas, Steam And Some Corrosive Liquid Port Size: DN50-700(2"~28")
Structure: Ball Connection Type: Flange Type
Connecting Flange: GB/T9113,JB/T79,ANSI B16.5 B16.47 Face To Face Dimension: GB/T12221,API6D,ANSI B16.10
Design Standards: GB/T12237,API6D,ANSI B16.34 Seal Type: PTFE / Teflon / PPL / Metal Seal
Flange Type: RF, FF,etc Testing And Inspection: GB/T9092,API6D,API598
Standard Range: API, ANSI,DIN,BS,JIS,GB,etc Color: To Order
Standard Or Nonstandard: Standard

Product Features:
·O ball valves are usually used as cut-off valves and two type control.
·Its flow is simple and fully forms straight channel when full open,with minimum pressure loss.
·Ball valve rotate 90 ° seated fully open/close fastly. Low friction coefficient and small operating torque.
·Good sealing. A variety of the seat material and wide adaptation.
·Worm gear operation, large output torque, and can control a larger ball valve.
·Specially, it's suitable for high viscosity, suspension occasions, such as pulp fluid.


Spare parts Material

Spare parts Material
Carbon steel Stainless steel
GB ASTM GB ASTM
Body/Bonet WCB A216-WCB ZG1Cr18Ni9Ti
ZG1Cr18Ni12Mo2Ti		 A351-CF8
A351-CF8M
A351-CF3
A351-CF3M
Ball 2Cr13
1Cr18Ni9		 A276-304
Stem 2Cr13 276-410 1Cr18Ni9Ti
1Cr18Ni12Mo2Ti		 A276-304；A276-304L
A276-316；A276-316L
Seal ring PTFE/Nylon/fill the F4 /carbon fiber/2Cr13+STL
Packing/Gasket PTFE/Asbestos packing/flexible graphite
Nut 35 A105-1035 Stainless steel
Double end bolt 35CrMoA A193-B7 Stainless steel



Dimension

BWAQ Worm Gear O Port Ball Valve+BWAQ



Rating Nominal diameter, DN L d D D1 D2 b f Z-Φdo H
PN16 25 150 25 115 85 65 14 2 4-14 90
32 165 32 135 100 78 16 2 4-18 107
40 180 38 145 110 85 16 3 4-18 127
50 200 51 160 125 100 16 3 4-18 140
65 220 64 180 145 120 18 3 4-18 164
80 250 76 195 160 135 20 3 8-18 177
100 280 102 215 180 155 20 3 8-18 206
125 320 127 245 210 185 22 3 8-18 292
150 360 152 280 240 210 24 3 8-23 320
200 400 203 335 295 265 26 3 12-23 365
PN25 25 150 25 115 85 65 14 2 4-14 90
32 165 32 135 100 78 16 2 4-18 107
40 180 38 145 110 85 16 3 4-18 127
50 200 51 160 125 100 20 3 4-18 140
65 220 64 180 145 120 22 3 8-18 164
80 250 76 195 160 135 22 3 8-18 177
100 320 102 230 190 160 24 3 8-23 206
125 360 127 270 220 188 28 3 8-25 292
150 400 152 300 250 218 30 3 8-25 320
200 550 203 360 310 278 34 3 12-25 365
PN40 25 165 25 115 85 65 16 2 4-14 90
32 178 32 135 100 78 18 2 4-18 107
40 190 38 145 110 85 18 3 4-18 127
50 220 51 160 125 100 20 3 4-18 140
65 250 64 180 145 120 22 3 8-18 164
80 280 76 195 160 135 22 3 8-18 177
100 320 102 230 190 160 24 3 8-23 206
125 400 127 270 220 188 28 3 8-25 292
150 400 152 300 250 218 30 3 8-25 320
200 550 203 375 320 282 38 3 12-30 365
