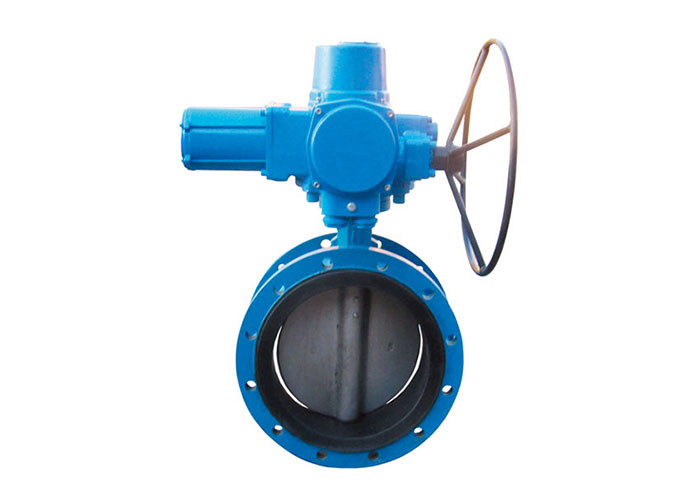

Name: Ordinary Type BQWA Wafer Center Line Electric Butterfly Valve
Brand: TIANJIN BELL
SKU: BQWF
Price: 500 USD

Home Products Electric On/off Butterfly Valve

Ordinary Type BQWA Wafer Center Line Electric Butterfly Valve

Product Details:

Place of Origin:	TIANJIN CHINA
Brand Name:	TIANJIN BELL
Certification:	ISO9001 CE
Model Number:	BQWF

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	USD 500-1000 PIECE
Packaging Details:	plywood case
Delivery Time:	10-20days
Payment Terms:	T/T L/C Western Union Paypal
Supply Ability:	1000 piece per month

Contact Now

Detailed Product Description

Body Material:	Cast Iron, Cast Steel, Stainless Steel	Seal Ring Materials:	EPDM -40~+125℃ NBR -20~+82℃ SI -70~+150℃ VITON -23~+150℃ PTFE +10~+150℃
Applicable Medium:	Fresh Water, Sewage, Sea Water, Air, Steam, Food, Drug, Various Oil, Acid, Alkali, Salt, Etc.	Power Supply:	380V 50Hz (for Selected);
Working Environment:	Environmental Temperature: -20℃~+60℃; Relative Humity:≤90（25℃）(surrounding Air Does Not Have Corrosive Elements);	Protection Grade:	IP55
Working Duty:	Short Duty, Rated Working Time Is 10 Minutes.

Product feature
Full rubber lining, vulcanized on the inner wall of the valve body, no leakage at the contact point between the rubber and the inner wall of the valve body.
·Strong adhesive lining, avoiding movement and redundancy, high reliability.
· Rubber and valve plate sealing design is reasonable, low torsion, high sealing pressure, and no bubble tight seal.
· Flange connection, good for neutral, can be used for pipe ends.
·Equipped with BSQ series angular stroke electric actuator, large output torque, simple operation, economical and practical.

Performance Specification
Body Material: Cast Iron, Cast Steel, Stainless Steel
Seal Ring Materials: EPDM -40~+125℃
NBR -20~+82℃
SI -70~+150℃
VITON -23~+150℃
PTFE +10~+150℃

Applicable medium: Fresh water, sewage, sea water, air, steam, food, drug, various oil, acid, alkali, salt, etc.

Electric Actuator Main Parameters:
Power Supply: 380V 50Hz (for selected);
Working Environment: Environmental Temperature: -20℃~+60℃; Relative Humity:≤90(25℃)(surrounding air does not have corrosive elements);
Protection Grade: IP55;
Working Duty: Short duty, rated working time is 10 minutes.

Dimension

Ordinary Type BQWA Wafer Center Line Electric Butterfly Valve

Nominal diameter, DN		Face to face,L		Dimension(for reference)				Connection(standard)
Nominal diameter, DN		Face to face,L		H	H3	A3	B3	PN0.6MPa			PN1.0MPa
mm	inch	S	L	H	H3	A3	B3	D	D1	z- d	D	D1	z- d
50	2	108	150	112	530	250	255	140	110	4-14	165	125	4-18
65	5/2	112	170	115	530	250	255	160	130	4-14	185	145	4-18
80	3	114	180	120	565	250	255	190	150	4-18	200	160	8-18
100	4	127	190	138	600	250	255	210	170	4-18	220	180	8-18
125	5	140	200	164	640	250	255	240	200	8-18	250	210	8-18
150	6	140	210	175	705	300	315	165	225	8-18	285	240	8-22
200	8	152	230	200	775	300	315	320	280	8-18	340	295	8-22
250	10	165	250	243	945	300	315	375	335	12-18	395	350	12-22
300	12	178	270	250	1070	300	315	440	395	12-22	445	400	12-22
350	14	190	290	280	1140	300	315	490	445	12-22	505	460	16-22
400	16	216	310	305	1210	300	315	540	495	16-22	565	515	16-26
450	18	222	330	350	1335	575	714	595	550	16-22	615	565	20-26
500	20	229	350	380	1415	575	714	645	600	20-22	670	620	20-26
600	24	267	390	445	1605	656	810	755	705	20-26	780	725	20-30
700	28	292	430	480	1844	656	810	860	810	24-26	895	840	24-30
800	32	318	470	530	2040	656	810	975	920	24-30	1015	950	24-33
900	36	330	510	580	2255	785	863	1075	1020	24-30	1115	1050	28-33
1000	40	410	550	650	2380	785	863	1175	1120	28-30	1230	1160	28-36
1200	48	470	630	760	2640	785	863	1405	1340	32-33	1455	1380	32-39
1400	56	530	710	850	2886	8410	890	1630	1560	36-36	1675	1590	36-42
1600	64	600	790	1030	3156	810	890	1830	1760	40-36	1915	1820	40-48
1800	72	670	870	1230	3421	830	930	2045	1970	44-39	2115	2020	44-48
