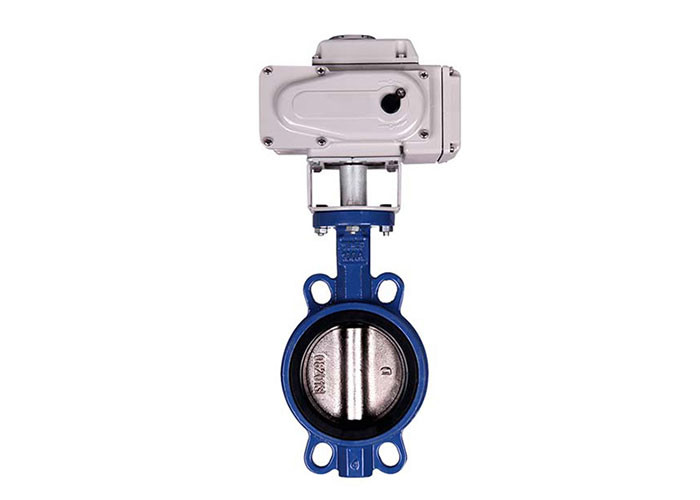

Small Size BLWA Wafer Center Line Electric Butterfly Valve

Small Size BLWA Wafer Center Line Electric Butterfly Valve

Small Size BLWA Wafer Center Line Electric Butterfly Valve

Product Details:

Place of Origin: TIANJIN CHINA
Brand Name: TIANJIN BELL
Certification: ISO9001 CE
Model Number: BLWA

Payment & Shipping Terms:

Minimum Order Quantity: 1 PIECE
Price: USD 100-900 PIECE
Packaging Details: plywood case
Delivery Time: 10-20 days
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 1000 pieces per month
Contact Now
Detailed Product Description
Port Size: DN50-800 (2"~32") Material: Cast Iron, Casting Steel,Stainless Steel
Temperature Of Media: ~20℃~450℃ Based On Material Power: Electric, AC110,220,380V/DC24,220V Or To Order
Media: Fresh Water, Sewage, Sea Water, Air, Steam, Acids, Oil, Alkali,etc Structure: Butterfly
Connection Type: Wafer Type Actuator Control Type: On Off Type; Regulating Type
Input Signal: 0-10,1-5VDC/4-20mA (Smart Regulation Type) Seat Sealing: EPDM, NBR, Wear Rubber
Temperature: EPDM≤105℃,NBR≤68℃ Certificate: ISO9001, CE
Standard Range: ANSI,API,JIS,DIN,BS,GB,etc Color: To Order

Product Features:
·Compact structure, reliable sealing performance, long service life
·Widely used in fluid pipeline control system if water plant, power plant, steel mill, paper mill, chemical plant and buildings, acting as regulator of medium in the pipeline.
·Using BL Series small electric actuator, it's small in appearance, stable and reliable, and suitable for small size valves.


Performance Specification
Body Material: Cast Iron, Cast Steel, Stainless Steel
Seal Ring Materials:

EPDM -40~+125℃
NBR -20~+82℃
SI -70~+150℃
VITON -23~+150℃
PTFE +10~+150℃


Applicable medium: Fresh water, sewage, sea water, air, steam, food, drug, various oil, acid, alkali, salt, etc.


Electric Actuator Main Parameters:
Power Supply: DC24V, AC110V, AC220V, AC380V, 50/60Hz;
Input Signal: On/off
Output Signal: On/off or 4-20mA
Environmental Temperature: -25℃~+60℃;
Protection Grade: IP67.


Dimension

Small Size BLWA Wafer Center Line Electric Butterfly Valve

Unit:mm

DN L H H1 L1 0.6MPa 1.0MPa 1.6MPa
D Z-Фd D Z-Фd D Z-Фd
50 43 63 438 125 110 4-14 125 4-18 125 4-18
65 46 70 453 125 130 4-14 145 4-18 145 4-18
80 46 83 478 125 150 4-18 160 8-18 160 8-18
100 52 105 519 125 170 4-18 180 8-18 180 8-18
125 56 115 713 325 200 8-18 210 8-18 210 8-18
150 56 137 749 325 225 8-18 240 8-22 240 8-22
200 60 164 843 325 280 8-18 295 8-22 295 8-22
250 68 206 947 363 335 12-18 350 12-22 355 12-26
300 78 230 1013 363 395 12-22 400 12-22 410 12-26
