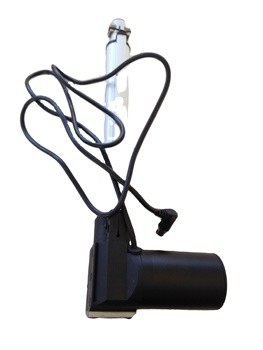

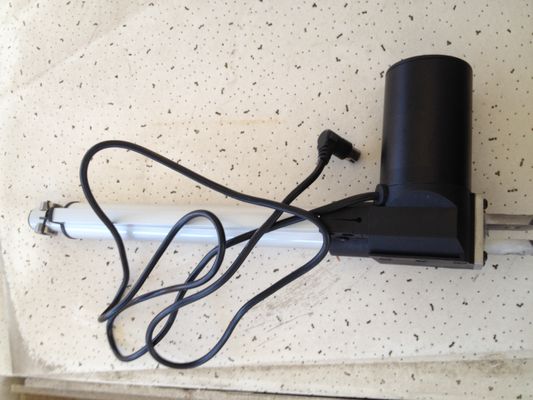

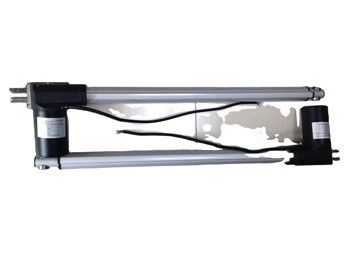

5000N High Force Automatic Lifting Door Electric Linear Actuator
Introduction:
The Linear actuator is a device that converts the rotational motion of a low voltage DC motor into linear motion. that is push and pull movements.
The electric linear actuator consists of a motor, a gear and a spindle including a nut.
It can replace the hydraulic, pneumatic and other traditional mechanical push and pull products,used in aircraft, ship, car or other products.
A complete automatic control system solution includes one or more linear actuators and control box
Main Parameters:
•Max load 5000N
•Duty cycle 20%(High-speed linear 10%)
•Operating temperature -20°C~+65°C
•Aluminium outer tube and stroke rod
•Protection IP54 or IP65
•12 or 24 or 36 or 48VDC
•Aluminium alloy housing
•Preset limit switches
•Powder metal gears
•Robust
Installation Size:
Performance Datas:
