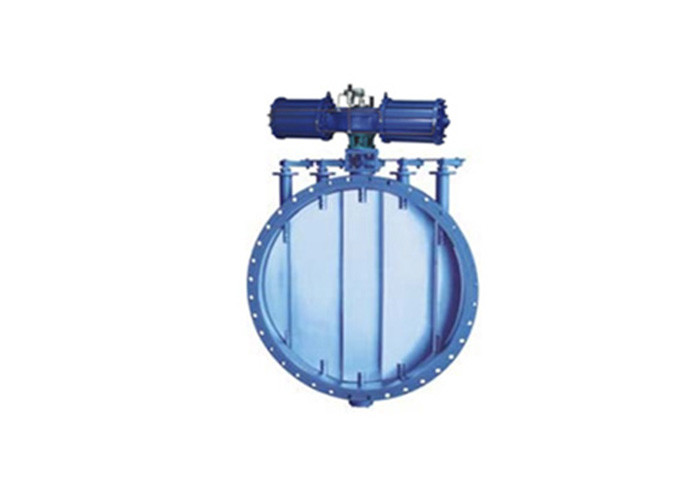

BAWYVB Pneumatic Shutter Round Damper

BAWYVB Pneumatic Shutter Round Damper

BAWYVB Pneumatic Shutter Round Damper

Product Details:

Place of Origin: TIANJIN CHINA
Brand Name: TIANJIN BELL
Certification: ISO9001 CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: USD 100-900 PIECE
Packaging Details: Plywood case
Delivery Time: 10-20 days
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 1000 pieces per month
Contact Now
Detailed Product Description

Product Features:
· BAWYVB pneumatic shutter round damper valve is matched with BAW pneumatic actuator. It can modulate large size damper valve flow.
· Valve has a variety of materials, adapt to different working temperature.
· The matching pneumatic actuator must be with positioner to modulate the opening degree of valve and with high regulation accuracy.


Performance Specification

Working temperature -30~250℃

Applicable environment temperature

(Standard)

-20℃~+80℃
Nominal pressure 0.05MPa
Input Signal 0~10mA or 4~20mA

Applicable environment temperature

(High Temperature)

-20℃~+180℃
Power Supply 220V 50HZ
Deadline ≤0.8% Material Body/Disc Q235-A
Backlash ≤2.5% Shaft 20Cr13
Basic Error ±2.5% Packing PTFE



Main Parameters of Actuator
1,Medium:Clean, dry and no-corrosive compressed air
2,Working gas pressure:0.3~0.7MPa
3,Working condition temperature:Standard type:-20℃~+80℃
High temperature type:-20℃~+180℃
4,Rotary angle:90°±3°
5,Positioner input/output sinal: 4-20mA(others for choice)


Dimension

BAWYVB Pneumatic Shutter Round Damper

Note:Other size valves can be customized according to customer's requirements.



DN D1 D L L1 L2 L3 n-d pneumatic actuator Matching fan model
Model Torque, Nm
280 306 324 160 300 567 745 8-φ10 BAW13 250 4-72
320 350 367 180 618 827 16-φ7
360 394 416 640 876 16-φ7
450 490 512 365 801 1082 16-φ10 BAW13 600 4-72
500 550 620 831 1142
600 660 720 200 883 1246 16-φ10
180 205 230 160 245 520 670 8-φ7 BAW13 250 9-19
500 225 250 535 685 9-26
224 254 284 540 702 8-φ10 9-19
250 281 310 558 728 9-26
280 320 360 572 753 8-φ12 BAW13 250

9-19



9-26

315 355 395 180 605 830
352 395 435 300 630 870 12-φ12
400 450 500 715 990
450 500 550 735 1035
500 560 620 770 1105
560 620 680 200 820 1185 16-φ12
630 690 750 835 1235 BAW13 600 9-26
710 770 830 875 1315 16-φ12
800 880 920 220 365 930 1415 16-φ15
900 990 1040 990 1535 BAW17 1600

4-72

Y5-48

1000 1085 1145 260 424 1240 1820 24-φ15
1100 1195 1245 1295 1930 24-φ15
1120 1215 1265 280 560 1310 1960 24-φ15 BAW17 1600

Y5-48

G4-73

Y-11

1200 1290 1350 1350 2040
1400 1490 1550 320 1635 2420 28-φ15
1600 1685 1750 320 1738 2603 BAW20 2500
1800 1895 1955 420 1825 2800 32-φ15
2000 2095 2155 1845 2940
2200 2295 2355 450 2028 3205 36-φ19
2500 2600 2660 2175 3500 BAW28 4000
2800 2900 2970 500 2375 3800
