Place of Origin: | TIANJIN CHINA |
Brand Name: | TIANJIN BELL |
Certification: | ISO9001 CE |
Model Number: | BGTQ |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | USD 500-1000 PIECE |
Packaging Details: | PLYWOOD |
Delivery Time: | 10-15 DAYS |
Payment Terms: | T/T L/C |
Supply Ability: | 1000 PIECES |
Body type: | Straight Through Casting Ball Valve | Nominal Diameter: | DN25 ~ DN300 |
---|---|---|---|
Nominal pressure: | 1.6MPa, 4.0MPa, 6.4MPa | Connection: | Flange Connection According To JB79-59 Etc.RF Flange |
Body material: | Cast Steel, Stainless Steel | Packing: | V-type PTFE, Asbestos, Graphite |
Valve Core Material: | Stainless Steel,Carbon Steel Platinum Plating Ect. | Leakage: | Less Than Rated Capacity 10-8 |
Product Features:

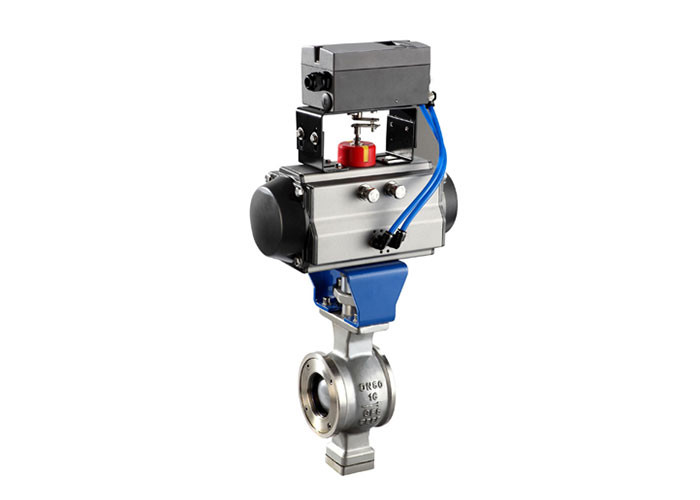

·V type ball valve are fixed and single seat sealing ball valves.
·Its regulation performance is the best in ball valve. Flow characteristic is equal percentage, with adjustable ratio of 100:1.
·There is shearing action between v-shaped incision and metal seat. It’s especially suitable for fiber, tiny solid particles and slurry medium.
·V type ball valve regulating performance is good, used as a regulator.
·With BGT angular travel series pneumatic actuators, it can control a small V type ball valve.
·The pneumatic actuator must be with positioner to modulate the opening degree of valve.
Technical parameter
Body type | Ball |
Nominal diameter | DN25~DN300 |
Nominal pressure | PN1.6 2.5 4.0 6.4MPa |
Connection | Flange JB79-59 RF |
Body | Cast steel, stainless steel |
Packing | V-type PTFE, asbestos, graphite |
Trim | Stainless steel, carbon steel platinum plating, etc |
Leakge | <rated capacity 10-8 |
Main Parameters of Actuator
1,Medium:Clean, dry and no-corrosive compressed air
2,Working gas pressure:0.4~0.7MPa
3,Working condition temperature:Standard type:-20℃~+80℃
High temperature type:-20℃~+180℃
4,Rotary angle:90°±3°
5,Positioner input/output sinal: 4-20mA(others for choice)
Dimension
Unit:mm
Nominal diameter DN | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | |
L | 1.6MPa | 140 | 180 | 200 | 220 | 250 | 280 | 360 | 500 |
2.5MPa | 160 | 200 | 220 | 250 | 280 | 320 | 360 | 500 | |
4MPa | 160 | 200 | 220 | 250 | 280 | 320 | 360 | 500 | |
6.4MPa | 180 | 220 | 250 | 280 | 320 | 360 | 500 | 600 | |
H | 279 | 299 | 388 | 398 | 408 | 476 | 610 | 640 | |
A | 125 | 125 | 294 | 294 | 294 | 378 | 603 | 603 |
