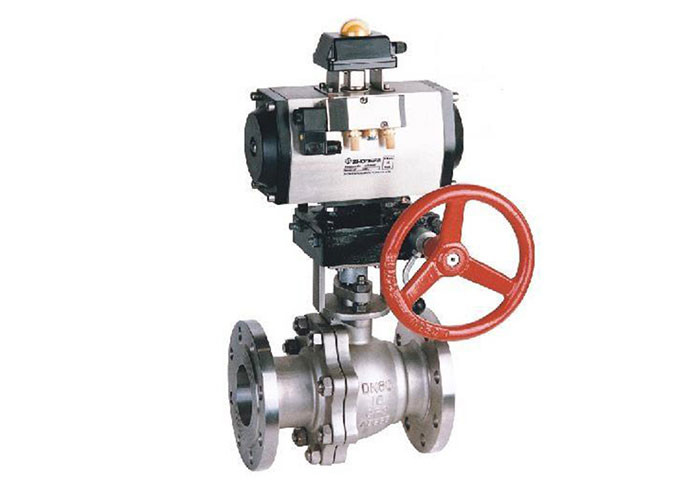

BAWQ Pneumatic O Port Ball Valve

BAWQ Pneumatic O Port Ball Valve

BAWQ Pneumatic O Port Ball Valve

Product Details:

Place of Origin: TIANJIN CHINA
Brand Name: TIANJIN BELL
Certification: ISO9001 CE
Model Number: BAWQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: USD 200-1000 PIECE
Packaging Details: plywood case
Delivery Time: 15-25 days
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 1000 pieces per month
Contact Now
Detailed Product Description
Material: Cast Iron,WCB, CF8, CF8M, CF3,CF3M Temperature Of Media: -60℃≤T≤350℃ Based On Material
Pressure: PN 1.6,2.5,4.0MPa; JIS 10K, 20K;Class 150lb,300lb,etc Power: Pneumatic
Media: Water,oil, Gas, Steam,acid,etc Port Size: DN15-200( 1/2"~8")
Structure: Ball Connection Type: Flange Type,Thread Type
Actuator Model: BGT,BAT,BAW,etc Actuator Control Type: On-off Type, Regulating Type
Regulating Type Signal: 4-20mA, 0~10V,etc Actuator Action Type: Single Acting, Double Acting
Packing Material: Flexible Graphite, PTFE Valve Type: 2 PCS, 3 PCS
Standard Range: ANSI/API,JIS,DIN,GB,etc Color: To Order
Standard Or Nonstandard: Standard

Product Features:
·O ball valves are usually used as cut-off valves.
·Its flow is simple and fully forms straight channel when full open,with minimum pressure loss.
·Specially, it's suitable for high viscosity, suspension occasions, such as pulp fluid.
·Reliable sealing, very small leakage. Soft seal ball valves can reach bubble level seal.
·Matching BGT series quarter-turn actuators, it can control a smaller O-type ball valve.
·Pneumatic actuator is matched with solenoid valve to control the opening and closing of the valve.


Technical parameter

Body type Ball
Nominal diameter DN25~DN300
Nominal pressure PN1.6 2.5 4.0 6.4MPa
Connection Flange JB79-59 RF
Body Cast steel, stainless steel
Packing V-type PTFE, asbestos, graphite
Trim Stainless steel, carbon steel platinum plating, etc
Leakge <rated capacity  10-8



Main Parameters of Actuator
1,Medium:Clean, dry and no-corrosive compressed air
2,Working gas pressure:0.4~0.7MPa
3,Working condition temperature:Standard type:-20℃~+80℃
High temperature type:-20℃~+180℃
4,Rotary angle:90°±3°
5,Supply voltage of the equipped solenoid valve is available to:24VDC,24VAC 50Hz,110VAC 50Hz,220VAC 50Hz


Dimension

BAWQ Pneumatic O Port Ball Valve



Unit:mm

Nominal diameter DN 25 40 50 65 80 100 150 200
L 1.6MPa 140 180 200 220 250 280 360 500
2.5MPa 160 200 220 250 280 320 360 500
4MPa 160 200 220 250 280 320 360 500
6.4MPa 180 220 250 280 320 360 500 600
H 279 299 388 398 408 476 610 640
A 125 125 294 294 294 378 603 603
