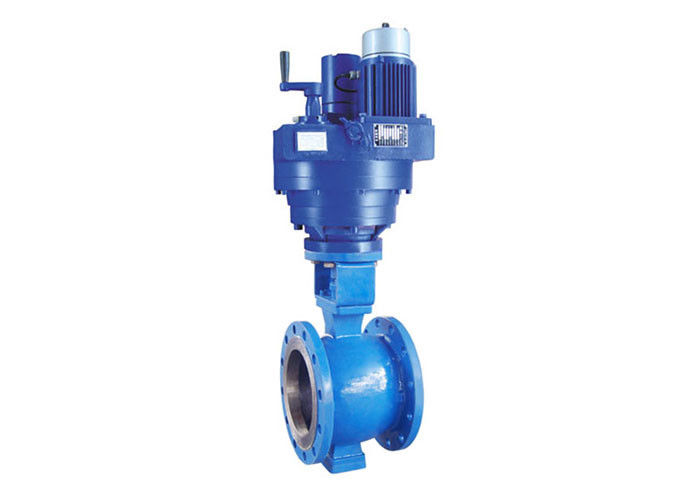

BELLAQ Electric V Port Ball Valve
Product Details:
| Place of Origin: |
TIANJIN CHINA |
| Brand Name: |
TIANJIN BELL |
| Certification: |
ISO9001 CE |
| Model Number: |
DKJQ |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 Piece |
| Price: |
USD 700-1000 PIECE |
| Packaging Details: |
plywood case |
| Delivery Time: |
10-20 days |
| Payment Terms: |
T/T L/C Western Union Paypal |
| Supply Ability: |
1000 pieces per month |
Contact Now
Detailed Product Description
| Model Number: |
DKJQ |
Application: |
General |
| Material: |
Casting |
Temperature Of Media: |
Medium Temperature |
| Pressure: |
Medium Pressure |
Power: |
Electric |
| Media: |
Water,gas,steam,oil Etc |
Port Size: |
DN25~DN300 |
| Structure: |
Ball |
Valve Body: |
Cast Steel,stainless Steel |
| Ball,stem: |
2Cr13 |
Seal Ring: |
Soft Graphite |
| Certificate: |
ISO9001 CE |
Connection Type: |
Flange |
| Supply Voltage: |
220V,110V,380V |
Color: |
Silver Grey,blue |
| Weight: |
Light |
Packing: |
Graphite |
| Standard Or Nonstandard: |
Standard |
Product Features:
·V type ball valve are fixed and single seat sealing ball valves.
·Its regulation performance is the best in ball valve. Flow characteristic is equal percentage, with adjustable ratio of 100:1.
·There is shearing action between v-shaped incision and metal seat. It’s especially suitable for fiber, tiny solid particles and slurry medium.
·V type ball valve regulating performance is good, used as a regulator.
·Using DKJ series electric actuators, easy for operation, economic, and high quanlity & reasonable price.
Technical parameter
| Body type |
Ball |
| Nominal diameter |
DN25～DN300 |
| Nominal pressure |
PN1.6 2.5 4.0 6.4MPa |
| Connection |
Flange JB79-59, RF |
| Body |
Cast steel, stainless steel |
| Packing |
V-type PTFE, asbestos, graphite |
| Trim |
Stainless steel, carbon steel platinum plating, etc |
| Leakage |
＜rated capacity 10-8
|
Electric Actuator Main Parameters:
· Input/Output Singal: 4~20mA or 0-10V DC;
· Input Resistance: 250 OHM;
· Basic Error: ±2.5%;
· Deadline: ≤3%(continuously adjustable)
· Power Supply: Single-Phase 220V 50Hz;
· Working Environmental Temperature: -10℃~+55℃
· Humity: ≤95%(surrounding air does not have corrosive elements);
Dimension
| Nominal diameter, DN |
25 |
40 |
50 |
65 |
80 |
100 |
150 |
200 |
| L |
1.6MPa |
140 |
180 |
200 |
220 |
250 |
280 |
360 |
500 |
| 2.5MPa |
160 |
200 |
220 |
250 |
280 |
320 |
360 |
500 |
| 4.0MPa |
160 |
200 |
220 |
250 |
280 |
320 |
360 |
500 |
| 6.4MPa |
180 |
220 |
250 |
280 |
320 |
360 |
500 |
600 |
| H |
580 |
600 |
660 |
670 |
680 |
690 |
710 |
750 |
| B |
330 |
330 |
428 |
428 |
428 |
428 |
484 |
484 |
| C |
330 |
330 |
428 |
428 |
428 |
428 |
484 |
484 |
Note:Large diameter valves can be customized according to customer's requirements.
