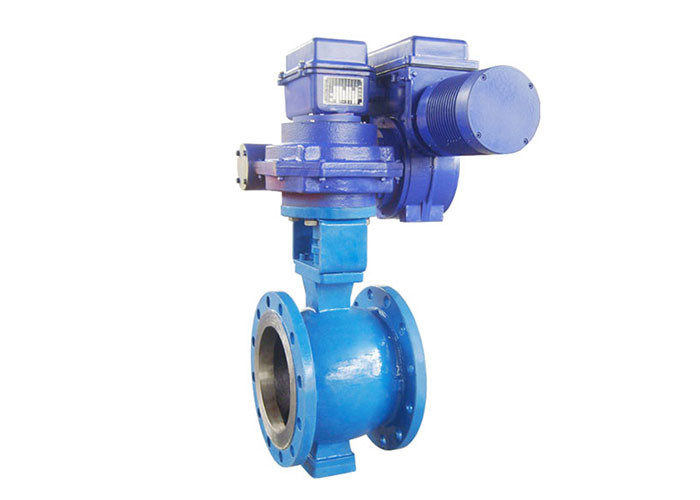

BELLAQ Electric V Port Ball Valve
Product Details:
| Place of Origin: |
TIANJIN CHINA |
| Brand Name: |
TIANJIN BELL |
| Certification: |
ISO9001 CE |
| Model Number: |
BELLAQ |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 Piece |
| Price: |
USD 500-1000 PIECE |
| Packaging Details: |
plywood case |
| Delivery Time: |
10-20 days |
| Payment Terms: |
T/T L/C Western Union Paypal |
| Supply Ability: |
1000 pieces per month |
Contact Now
Detailed Product Description
| Place Of Origin: |
Tianjin, China (Mainland) |
Material: |
Material |
| Temperature Of Media: |
Medium Temperature |
Pressure: |
Pressure |
| Powe: |
Powe |
Media: |
Water |
| Port Size: |
1/2'', 3/4'', 1'', 4'' |
Structure: |
Ball |
| Standard Or Nonstandard: |
Standard |
Product Features:
·V type ball valve are fixed and single seat sealing ball valves.
·Its regulation performance is the best in ball valve. Flow characteristic is equal percentage, with adjustable ratio of 100:1.
·There is shearing action between v-shaped incision and metal seat. It’s especially suitable for fiber, tiny solid particles and slurry medium.
·V type ball valve regulating performance is good, used as a regulator.
·Using Bell series actuator, with high regulation accuracy & function of motor overheating, over-torque protection. BELL series actuator can also be upgraded with local display, remote control or bus intelligent actuators.
Technical parameter
| Body type |
Ball |
| Nominal diameter |
DN25～DN300 |
| Nominal pressure |
PN1.6 2.5 4.0 6.4MPa |
| Connection |
Flange JB79-59, RF |
| Body |
Cast steel, stainless steel |
| Packing |
V-type PTFE, asbestos, graphite |
| Trim |
Stainless steel, carbon steel platinum plating, etc |
| Leakage |
＜rated capacity 10-8
|
Electric Actuator Main Parameters:
· Input/Output Singal: 4~20mA DC;
· Input Resistance: 250 OHM;
· Basic Error: ±1%;
· Deadline: 0.5%~3%(continuously adjustable);
· Power Supply: Three-Phase 380V 50Hz; Single-Phase 220V 50Hz(for selected);
· Working Environmental Temperature: Integral-type -10℃~+55℃; Separate-type -25℃~+70℃ ;
· Humity: ≤85%(surrounding air does not have corrosive elements);
· Protection Grade: IP65; Bus type & Intelligent type IP67;
· Communication Interface: Bus type conforms to PROFIBUS-DP.
Dimension
| Nominal diameter,DN |
25 |
40 |
50 |
65 |
80 |
100 |
150 |
200 |
| L |
1.6MPa |
140 |
180 |
200 |
220 |
250 |
280 |
360 |
500 |
| 2.5MPa |
160 |
200 |
220 |
250 |
280 |
320 |
360 |
500 |
| 4.0MPa |
160 |
200 |
220 |
250 |
280 |
320 |
360 |
500 |
| 6.4MPa |
180 |
220 |
250 |
280 |
320 |
360 |
500 |
600 |
| H |
470 |
480 |
520 |
550 |
560 |
580 |
600 |
630 |
| B |
493 |
493 |
493 |
493 |
605 |
605 |
612 |
612 |
| C |
300 |
300 |
300 |
300 |
360 |
360 |
360 |
360 |
Note:Large diameter valves can be customized according to customer's requirements.
