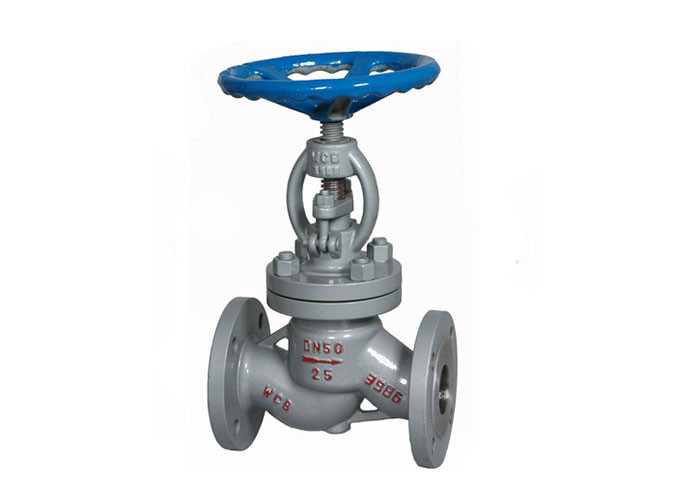

Manual Globe Valve 2

Manual Globe Valve 2

Manual Globe Valve 2

Product Details:

Place of Origin: TIANJIN CHINA
Brand Name: TIANJIN BELL
Certification: ISO9001 CE
Model Number: Z41H

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: USD 300-500 PIECE
Packaging Details: plywood case
Delivery Time: 10-20 DAYS
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 1000 pieces per month
Contact Now
Detailed Product Description
Material: WCB/CF8/CF8M/CF3/CF3M Temperature Of Media: -29℃~200℃ Based On Material
Pressure: PN10,PN16;Class 150lb;10K,etc Power: Manual
Media: Water, Oil Port Size: 1/2-14" (DN15~DN350)
Structure: Stop Connection Type: Flange
Flanged Type: FF, RF Gland Material: WCB/CF8/CF8M/CF3/CF3M
Stem Material: 2Cr13, SS304, SS410 Flange Standard: ASME B16.5, JIS B2220
Standard Range: ANSI,API,JIS,DIN,BS,GB,EN,etc Color: To Order
Standard Or Nonstandard: Standard

Features
· Globe valve opening and closing parts are plug-shaped Valve flap,Seal appear before plane or cone,Valve flap do linear movement along the center line of the fluid.
· Globe Valve is only applicable to fully open and fully closed,

Not allowed to be adjusted and the throttle.
· Globe valve is mandatory sealed valve,Therefore when valve close,

Pressure must be applied to the Valve flap,To force the sealing surface does not leak.
· Medium flow of Globe Valve,from up to down, to reduce stem stress.
· globe valve is opening, valve flap opening height achieve to 25% to 30% of nominal diameter,the maximum flow rate can be achieved.



Parts materials & Suitable medium

Body Bonnet Valve flap Sealing surface Stem Packing Suitable medium
WCB WCB+D507MO D577 2Cr13 Flexible graphite Water, oil, steam
ZG1Cr18Ni9Ti 0Cr18Ni9Ti Stellite6 1Cr18Ni9Ti PTFE Nitric acid
Stellite12
ZG1Cr18Ni2Mo2Ti CF8M 1Cr18Ni2Mo2Ti 1Cr18Ni2Mo2Ti PTFE Phosphoric acids
Stellite12 Alkalis,Mixed acid
ZG0Cr17Ni14M02 CF3M Stellite6 316L PTFE Phosphoric acids
Stellite12 Urea, methylamine solution
ZG1Cr5MO ZG1Cr5MO Stellite6 25Cr2Mo1VA Flexible graphite Water, oil, steam
Stellite12



Overall dimensions Chart

Manual Globe Valve 2



Normal Pressure Normal Diameter Standard Value Reference Value

PN

(MPa)

DN

(mm)

L D D1 D2   b n-φd D0 H

Weight

(kg)

1.6 25 160 115 85 65   14 4-φ14 160 253 8
32 180 135 100 78   15 4-φ18 160 280 12
40 200 145 110 85   16 4-φ18 200 312 16
50 230 160 125 100   16 4-φ18 200 321 16
65 290 180 145 120   18 4-φ18 240 325 22
80 310 195 160 135   20 8-φ18 240 355 31
100 350 215 180 155   20 8-φ18 280 415 45
125 400 245 210 185   22 8-φ18 320 460 80
150 480 280 240 210   24 8-φ23 360 510 97
200 600 335 295 265   26 12-φ23 360 590 169
2.5 25 160 115 85 65   16 4-φ14 160 285 7.5
32 180 135 100 78   18 4-φ18 180 302 8.5
40 200 145 110 85   18 4-φ18 200 355 12.5
50 230 160 125 100   20 4-φ18 240 362 16
65 290 180 145 120   22 8-φ18 280 325 25
80 310 195 160 135   22 8-φ18 280 369 30
100 350 230 190 160   24 8-φ23 300 370 35
125 400 270 220 188   28 8-φ25 400 558 89
150 480 300 250 218   30 8-φ25 400 611 98
200 600 360 310 278   34 12-φ25 400 721 170
