Place of Origin: | TIANJIN CHINA |
Brand Name: | TIANJIN BELL |
Certification: | ISO9001 CE |
Model Number: | J41F46 |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | USD 350-500 PIECE |
Packaging Details: | plywood case |
Delivery Time: | 10-20days |
Payment Terms: | T/T L/C Western Union Paypal |
Supply Ability: | 1000 pieces per month |
Material: | WCB/CF8/CF8M/CF3/CF3M | Temperature Of Media: | -29℃~200℃ Based On Material |
---|---|---|---|
Pressure: | PN10,PN16;Class 150lb;10K,etc | Power: | Manual |
Media: | Acid, Nitric Acid, Liquid Chlorine, Sulfuric Acid,etc | Port Size: | 1/2-14" (DN15~DN350) |
Structure: | Stop | Connection Type: | Flange |
Flanged Type: | FF, RF | Gland Material: | WCB/CF8/CF8M/CF3/CF3M |
Stem Material: | 2Cr13, SS304, SS410 | Lining Material: | PFA, PTFE, FEP, GXPO |
Valve Type: | Angle Type, Bellow Type, Y Type | Flange Standard: | ASME B16.5, JIS B2220 |
Standard Range: | :ANSI,API,JIS,DIN,BS,GB,EN,etc | Color: | To Order |
Standard Or Nonstandard: | Standard |

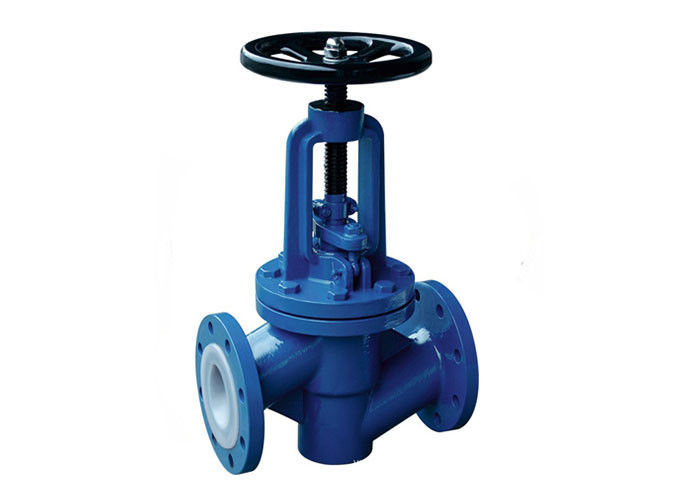

Features
· Globe valve opening and closing parts are plug-shaped Valve flap,
Seal appear before plane or cone,Valve flap do linear movement along the center line of the fluid.
· Globe Valve is only applicable to fully open and fully closed,
Not allowed to be adjusted and the throttle.
· Globe valve is mandatory sealed valve,Therefore when valve close,
Pressure must be applied to the Valve flap,To force the sealing surface does not leak.
· Medium flow of Globe Valve,from up to down, to reduce stem stress.
· globe valve is opening, valve flap opening height achieve to 25% to 30% of nominal diameter,the maximum flow rate can be achieved.
Parts materials & Suitable medium
Body Bonnet Valve flap Sealing surface Stem Packing Suitable medium
WCB WCB+D507MO D577 2Cr13 Flexible graphite Water, oil, steam
ZG1Cr18Ni9Ti 0Cr18Ni9Ti Stellite6 1Cr18Ni9Ti PTFE Nitric acid
Stellite12
ZG1Cr18Ni2Mo2Ti CF8M 1Cr18Ni2Mo2Ti 1Cr18Ni2Mo2Ti PTFE Phosphoric acids
Stellite12 Alkalis,Mixed acid
ZG0Cr17Ni14M02 CF3M Stellite6 316L PTFE Phosphoric acids
Stellite12 Urea, methylamine solution
ZG1Cr5MO ZG1Cr5MO Stellite6 25Cr2Mo1VA Flexible graphite Water, oil, steam
Stellite12
Overall dimensions Chart
Normal Pressure | Normal Diameter | Standard Value | Reference Value | ||||||||
PN (MPa) |
DN (mm) |
L | D | D1 | D2 | b | n-φd | D0 | H |
Weight (kg) |
|
1.6 | 25 | 160 | 115 | 85 | 65 | 14 | 4-φ14 | 160 | 253 | 8 | |
32 | 180 | 135 | 100 | 78 | 15 | 4-φ18 | 160 | 280 | 12 | ||
40 | 200 | 145 | 110 | 85 | 16 | 4-φ18 | 200 | 312 | 16 | ||
50 | 230 | 160 | 125 | 100 | 16 | 4-φ18 | 200 | 321 | 16 | ||
65 | 290 | 180 | 145 | 120 | 18 | 4-φ18 | 240 | 325 | 22 | ||
80 | 310 | 195 | 160 | 135 | 20 | 8-φ18 | 240 | 355 | 31 | ||
100 | 350 | 215 | 180 | 155 | 20 | 8-φ18 | 280 | 415 | 45 | ||
125 | 400 | 245 | 210 | 185 | 22 | 8-φ18 | 320 | 460 | 80 | ||
150 | 480 | 280 | 240 | 210 | 24 | 8-φ23 | 360 | 510 | 97 | ||
200 | 600 | 335 | 295 | 265 | 26 | 12-φ23 | 360 | 590 | 169 | ||
2.5 | 25 | 160 | 115 | 85 | 65 | 16 | 4-φ14 | 160 | 285 | 7.5 | |
32 | 180 | 135 | 100 | 78 | 18 | 4-φ18 | 180 | 302 | 8.5 | ||
40 | 200 | 145 | 110 | 85 | 18 | 4-φ18 | 200 | 355 | 12.5 | ||
50 | 230 | 160 | 125 | 100 | 20 | 4-φ18 | 240 | 362 | 16 | ||
65 | 290 | 180 | 145 | 120 | 22 | 8-φ18 | 280 | 325 | 25 | ||
80 | 310 | 195 | 160 | 135 | 22 | 8-φ18 | 280 | 369 | 30 | ||
100 | 350 | 230 | 190 | 160 | 24 | 8-φ23 | 300 | 370 | 35 | ||
125 | 400 | 270 | 220 | 188 | 28 | 8-φ25 | 400 | 558 | 89 | ||
150 | 480 | 300 | 250 | 218 | 30 | 8-φ25 | 400 | 611 | 98 | ||
200 | 600 | 360 | 310 | 278 | 34 | 12-φ25 | 400 | 721 | 170 |
