Place of Origin: | TIANJIN CHINA |
Brand Name: | TIANJIN BELL |
Certification: | ISO9001 CE |
Model Number: | BWWF |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | USD 200-1000 PIECE |
Packaging Details: | plywood case |
Delivery Time: | 10-15 days |
Payment Terms: | T/T L/C Western Union Paypal |
Supply Ability: | 1000 pieces per month |
Size: | DN50-DN1000 | Material: | Stainless Steel |
---|---|---|---|
Sealing: | Rubber Seal | Nominal Pressure: | PN1.0 1.6 2.5 |
Applicable Medium: | Air, Water, Vapor, Gas And Slightly Corrosive Medium Such As Acids, Alkali And Salt | Leakage: | Zero Leakage |

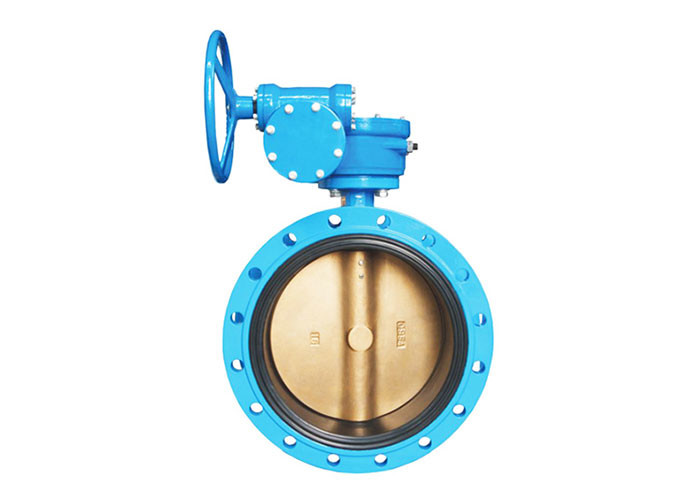

Product Feature
·Small size, convenient, easy to assemble and disassemble, maintenance, fix at any positions.
·A mere 90 degrees rotation can realize fast-speed open and close, small operating torque, light and handy.
·A variety of options for spare parts material, suitable to different mediums.
·Flow characteristic is close to straight line, the regulation performance is good.
Performance Specification
Valve body material:cast iron, cast steel, stainless steel
Seal-ring material:EPDM -40~+125℃
NBR -20~+82℃
SI -70~+150℃
VITON -23~+150℃
PTFE +10~+150℃
Medium:fresh water, sewage, sea water, air, steam, food, drugs, all kinds of oil, acid, alkali, salt and so on.
Dimension
Diameter DN |
Pressure 1.0MPa | |||||||
L | D | D1 | D2 | b | Z-φd | H1 | H2 | |
DN50 | 108 | 160 | 125 | 100 | 16 | 4-φ18 | 65 | 220 |
DN65 | 112 | 180 | 145 | 120 | 18 | 4-φ18 | 70 | 220 |
DN80 | 114 | 195 | 160 | 135 | 20 | 4-φ18 | 100 | 220 |
DN100 | 127 | 215 | 180 | 155 | 22 | 8-φ18 | 120 | 235 |
DN125 | 140 | 245 | 210 | 185 | 22 | 8-φ18 | 138 | 260 |
DN150 | 140 | 280 | 240 | 210 | 24 | 8-φ23 | 160 | 290 |
DN200 | 152 | 335 | 295 | 265 | 24 | 8-φ23 | 185 | 325 |
DN250 | 165 | 390 | 350 | 320 | 26 | 12-φ23 | 219 | 370 |
DN300 | 178 | 440 | 400 | 368 | 26 | 12-φ23 | 240 | 413 |
DN350 | 190 | 500 | 460 | 428 | 26 | 16-φ23 | 270 | 443 |
DN400 | 216 | 565 | 515 | 482 | 26 | 16-φ25 | 305 | 513 |
DN450 | 222 | 615 | 565 | 532 | 28 | 20-φ25 | 345 | 548 |
DN500 | 229 | 670 | 620 | 585 | 28 | 20-φ25 | 363 | 608 |
DN600 | 267 | 780 | 725 | 685 | 34 | 20-φ30 | 431 | 703 |
DN700 | 292 | 895 | 840 | 800 | 34 | 24-φ30 | 488 | 768 |
DN800 | 318 | 1010 | 950 | 905 | 36 | 24-φ34 | 540 | 859 |
DN900 | 330 | 1110 | 1050 | 1005 | 38 | 28-φ34 | 608 | 905 |
DN1000 | 410 | 1220 | 1160 | 1115 | 38 | 28-φ34 | 715 |
980 |
Diameter DN |
Pressure 1.6MPa | |||||||
L | D | D1 | D2 | b | Z-φd | H1 | H2 | |
DN50 | 108 | 160 | 125 | 100 | 16 | 4-φ18 | 65 | 220 |
DN65 | 112 | 180 | 145 | 120 | 18 | 4-φ18 | 70 | 220 |
DN80 | 114 | 195 | 160 | 135 | 20 | 8-φ18 | 100 | 220 |
DN100 | 127 | 215 | 180 | 155 | 22 | 8-φ18 | 120 | 235 |
DN125 | 140 | 245 | 210 | 185 | 22 | 8-φ18 | 138 | 260 |
DN150 | 140 | 280 | 240 | 210 | 24 | 8-φ23 | 160 | 290 |
DN200 | 152 | 335 | 295 | 265 | 24 | 12-φ23 | 185 | 325 |
DN250 | 165 | 405 | 355 | 320 | 26 | 12-φ25 | 219 | 370 |
DN300 | 178 | 460 | 410 | 375 | 28 | 12-φ25 | 240 | 413 |
DN350 | 190 | 520 | 470 | 435 | 30 | 16-φ25 | 270 | 443 |
DN400 | 216 | 580 | 525 | 485 | 32 | 16-φ30 | 305 | 513 |
DN450 | 222 | 640 | 585 | 545 | 34 | 20-φ30 | 345 | 548 |
DN500 | 229 | 705 | 650 | 608 | 36 | 20-φ34 | 363 | 608 |
DN600 | 267 | 840 | 770 | 718 | 38 | 20-φ41 | 431 | 703 |
DN700 | 292 | 910 | 840 | 788 | 40 | 24-φ41 | 488 | 768 |
DN800 | 318 | 1020 | 950 | 898 | 42 | 24-φ41 | 540 | 859 |
DN900 | 330 | 1120 | 1050 | 998 | 44 | 28-φ41 | 608 | 905 |
DN1000 | 410 | 1255 | 1170 | 1110 | 46 | 28-φ48 | 715 |
980 |
