Place of Origin: | TIANJIN CHINA |
Brand Name: | TIANJIN BELL |
Certification: | ISO9001 CE |
Model Number: | BSWA |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | USD 100-500 PIECE |
Packaging Details: | plywood case |
Delivery Time: | 5-10days |
Payment Terms: | T/T L/C Western Union Paypal |
Supply Ability: | 1000 pieces per month |
Size: | DN50-DN500 | Material: | Cast Iron |
---|---|---|---|
Sealing: | Rubber Seal | Nominal Pressure: | PN1.0 1.6 2.5 |
Applicable Medium: | Air, Water, Vapor, Gas And Slightly Corrosive Medium Such As Acids, Alkali And Salt | Leakage: | Zero Leakage |

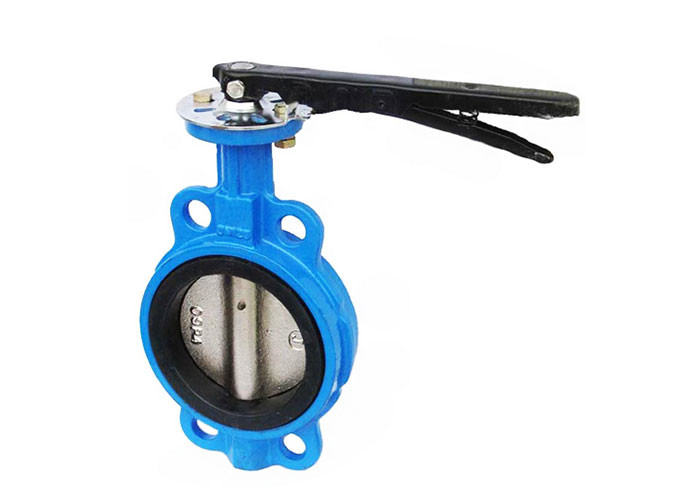

Product Feature
·Simple structure, small size, light weight, the number of spare parts is limited
·A mere 90 degrees rotation can realize fast-speed open-close, easy operation and good performance for controlling the fluid.
·When the butterfly valve is fully opened, the valve plate thickness is the only resistance as the mediums flow through the valve body, so the differential pressure is small.
·Better performance for controlling the flow
Performance Specifications
Valve body material:cast iron, cast steel, stainless steel
Seal-ring material:EPDM -40~+125℃
NBR -20~+82℃
SI -70~+150℃
VITON -23~+150℃
PTFE +10~+150℃
Medium:fresh water, sewage, sea water, air, steam, food, drugs, all kinds of oil, acid, alkali, salt and so on.
Dimensions
Diameter DN | L | D1 | D | Z-φd | H | H0 | A | B |
50 | 43 | 125 | 165 | 4-18 | 63 | 306 | 193 | 125 |
65 | 46 | 145 | 185 | 4-18 | 70 | 321 | 193 | 125 |
80 | 46 | 160 | 200 | 8-18 | 83 | 346 | 193 | 125 |
100 | 52 | 180 | 220 | 8-18 | 105 | 387 | 193 | 125 |
125 | 56 | 210 | 250 | 8-18 | 115 | 411 | 193 | 125 |
150 | 56 | 240 | 285 | 8-22 | 137 | 447 | 193 | 125 |
200 | 60 | 295 | 340 | 8-22 | 164 | 572 | 283 | 165 |
250 | 68 | 350 | 395 | 12-22 | 206 | 646 | 283 | 165 |
300 | 78 | 400 | 445 | 12-22 | 230 | 738 | 334 | 175 |
350 | 78 | 460 | 505 | 16-22 | 248 | 761 | 334 | 175 |
400 | 102 | 515 | 565 | 16-26 | 289 | 877 | 425 | 210 |
450 | 114 | 565 | 615 | 20-26 | 320 | 938 | 425 | 210 |
500 | 127 | 620 | 670 | 20-26 | 343 | 993 | 425 |
210 |
