Place of Origin: | TIANJIN CHINA |
Brand Name: | TIANJIN BELL |
Certification: | ISO9001 CE |
Model Number: | ZAJWSY |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | USD 500-1000 PIECE |
Packaging Details: | plywood case |
Delivery Time: | 15-30 days |
Payment Terms: | T/T L/C Western Union Paypal |
Supply Ability: | 1000 pieces per month |
Place Of Origin: | Tianjin, China (Mainland) | Application: | Application General |
---|---|---|---|
Material: | Cast Iron, Ductile Iron,Casting Steel / WCB,Stainless Steel | Temperature Of Media: | ≤425 ℃ Based On Material |
Pressure: | PN1.0,1.6MPa;150lb,300lb;10K,20K,etc | Media: | Water, Oil, Steam,Nitric Acid And Other Corrosive Media,etc |
Port Size: | DN50-800 (2"~32") | Structure: | Butterfly |
Actuator Type: | BAT,BGT, BAW,etc | Actuator Control Type: | On-off Type, Regulating Type |
Regulating Type Signal: | 4-20mA, 0-10V,etc | Actuator Acting Type: | Single Acting, Double Acting |
Color: | To Order | Standard Or Nonstandard: | Standard |

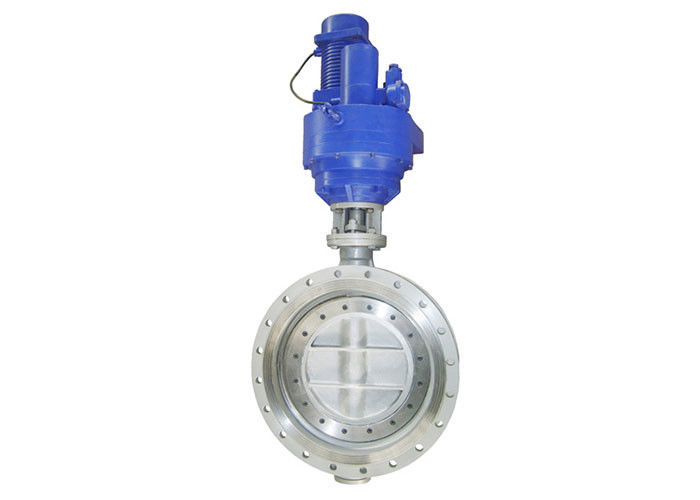

Product Features:
·Using DKJ series electric actuator,easy for installation and maintenance, economic.
·Good performance for anti-corrosion, anti-high temperature and anti-abrasion.
·Good mechanical performance and sealing performance can achieve zero leakage.
Electric Actuator Main Parameters:
· Input/Output Singal: 4~20mA or 0-10V DC;
· Input Resistance: 250 OHM;
· Basic Error: ±2.5%;
· Deadline: ≤3%(continuously adjustable)
· Power Supply: Single-Phase 220V 50Hz;
· Working Environmental Temperature: -10℃~+55℃
· Humity: ≤95%(surrounding air does not have corrosive elements);
DN mm |
Electric actuator |
Output torque, Nm |
L | L1 | H | B | D | H1 | PN1.0MPa | |||||
H4 | D0 | D3 | D2 | N-D1 | 4-M | |||||||||
100 | DKJ-3100 | 250 | 270 | 330 | 622 | 127 | 120 | 105 | 22 | 180 | 156 | 220 | 4-Φ18 | 4-M16 |
125 | DKJ-3100 | 250 | 270 | 330 | 637 | 140 | 142 | 110 | 22 | 210 | 184 | 250 | 4-Φ18 | 4-M16 |
150 | DKJ-4100 | 600 | 368 | 428 | 692 | 140 | 166 | 135 | 24 | 240 | 211 | 285 | 4-φ22 | 4-M20 |
200 | DKJ-5100 | 1600 | 424 | 484 | 813 | 152 | 216 | 160 | 24 | 295 | 266 | 340 | 4-φ22 | 4-M20 |
250 | DKJ-5100 | 1600 | 424 | 484 | 853 | 165 | 260 | 270 | 26 | 350 | 319 | 395 | 4-φ22 | 4-M20 |
300 | DKJ-6100A | 2500 | 424 | 484 | 893 | 178 | 315 | 285 | 26 | 400 | 370 | 445 | 4-φ22 | 4-M20 |
DN mm |
Electric actuator
|
Output torque, Nm | L | L1 | H | B | D | H1 | PN1.6MPa | PN2.5MPa | ||||||||||
H4 | D0 | D3 | D2 | N-D1 | 4-M | H4 | D0 | D3 | D2 | N-D1 | 4-M | |||||||||
100 |
DKJ- 3100 |
250 | 270 | 330 | 622 | 127 | 120 | 105 | 22 | 180 | 156 | 220 | 4-Φ18 | 4-M16 | 24 | 190 | 156 | 235 | 4-φ22 | 4-M20 |
125 |
DKJ- 3100 |
250 | 270 | 330 | 637 | 140 | 142 | 110 | 22 | 210 | 184 | 250 | 4-Φ18 | 4-M16 | 26 | 220 | 184 | 270 | 4-φ26 | 4-M24 |
150 |
DKJ- 4100 |
600 | 368 | 428 | 692 | 140 | 166 | 135 | 24 | 240 | 211 | 285 | 4-φ22 | 4-M20 | 28 | 250 | 211 | 300 | 4-φ26 | 4-M24 |
200 |
DKJ- 5100 |
1600 | 424 | 484 | 813 | 152 | 216 | 160 | 24 | 295 | 266 | 340 | 4-φ22 | 4-M20 | 30 | 310 | 274 | 360 | 4-φ26 | 4-M24 |
250 |
DKJ- 5100 |
1600 | 424 | 484 | 853 | 165 | 260 | 270 | 26 | 355 | 319 | 405 | 4-φ26 | 4-M24 | 32 | 370 | 330 | 425 | 4-Φ30 | 4-M27 |
300 |
DKJ- 6100A |
2500 | 424 | 484 | 893 | 178 | 315 | 285 | 28 | 410 | 370 | 460 | 4-φ26 | 4-M24 | 34 | 430 | 389 | 485 | 4-Φ30 | 4-M27 |
