Place of Origin: | TIANJIN CHINA |
Brand Name: | TIANJIN BELL |
Certification: | ISO9001 CE |
Model Number: | BELLWSY |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | USD 600-1000 piece |
Packaging Details: | plywood case |
Delivery Time: | 15-30 days |
Payment Terms: | T/T L/C Western Union Paypal |
Supply Ability: | 1000 pieces per month |
Brand Name: | BELL | Model Number: | ZAJWA, ZAJWF, ZAJWSY, ZAJWK |
---|---|---|---|
Material: | Customed | Temperature Of Media: | Medium Temperature |
Pressure: | Medium Pressure | Power: | Electric |
Media: | Water | Port Siz: | 1/2''--80'' |

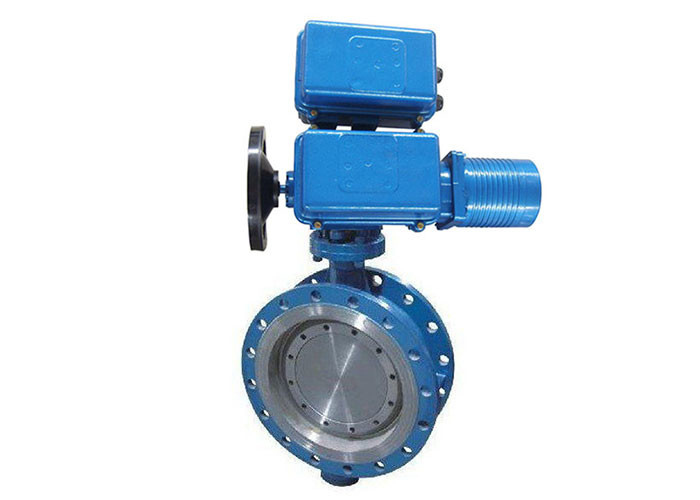

Structure: | Butterfly |
Product Features:
·Using Bell series actuator, with igh regulation accuracy & fault alarm function.
·It can add function like Local display, remote control and Bus controlling
·Good performance for anti-corrosion, anti-high temperature and anti-abrasion.
·Good mechanical performance and sealing performance can achieve zero leakage.
Electric Actuator Main Parameters:
· Input/Output Singal: 4~20mA DC;
· Input Resistance: 250 OHM;
· Basic Error: ±1%;
· Deadline: 0.5%~3%(continuously adjustable);
· Power Supply: Three-Phase 380V 50Hz; Single-Phase 220V 50Hz(for selected);
· Working Environmental Temperature: Integral-type -10℃~+55℃; Separate-type -25℃~+70℃ ;
· Humity: ≤85%(surrounding air does not have corrosive elements);
· Protection Grade: IP65; Bus type & Intelligent type IP67;
· Communication Interface: Bus type conforms to PROFIBUS-DP.
DN mm |
Electric actuator
|
Output torque, Nm | L | L1 | H | B | D | H1 | PN1.0MPa | |||||
H4 | D0 | D3 | D2 | N-D1 | 4-M | |||||||||
100 | BELL-25 | 250 | 493 | 300 | 685 | 127 | 120 | 105 | 22 | 180 | 156 | 220 | 4-Φ18 | 4-M16 |
125 | 700 | 140 | 142 | 110 | 22 | 210 | 184 | 250 | 4-Φ18 | 4-M16 | ||||
150 | BELL-60 | 600 | 605 | 360 | 720 | 140 | 166 | 135 | 24 | 240 | 211 | 285 | 4-φ22 | 4-M20 |
200 | BELL-160 | 1600 | 612 | 372 | 864 | 152 | 216 | 160 | 24 | 295 | 266 | 340 | 4-φ22 | 4-M20 |
250 | 904 | 165 | 260 | 270 | 26 | 350 | 319 | 395 | 4-φ22 | 4-M20 | ||||
300 | BELL-250 | 2500 | 612 | 491 | 944 | 178 | 315 | 285 | 26 | 400 | 370 | 445 | 4-φ22 | 4-M20 |
DN mm |
Electric actuator
|
Output torqueNm | L | L1 | H | B | D | H1 | PN1.6MPa | PN2.5MPa | ||||||||||
H4 | D0 | D3 | D2 | N-D1 | 4-M | H4 | D0 | D3 | D2 | N-D1 | 4-M | |||||||||
100 |
BELL- 25 |
250 | 493 | 300 | 685 | 127 | 120 | 105 | 22 | 180 | 156 | 220 | 4-Φ18 | 4-M16 | 24 | 190 | 156 | 235 | 4-φ22 | 4-M20 |
125 | 700 | 140 | 142 | 110 | 22 | 210 | 184 | 250 | 4-Φ18 | 4-M16 | 26 | 220 | 184 | 270 | 4-φ26 | 4-M24 | ||||
150 |
BELL- 60 |
600 | 605 | 360 | 720 | 140 | 166 | 135 | 24 | 240 | 211 | 285 | 4-φ22 | 4-M20 | 28 | 250 | 211 | 300 | 4-φ26 | 4-M24 |
200 |
BELL- 160 |
1600 | 612 | 372 | 864 | 152 | 216 | 160 | 24 | 295 | 266 | 340 | 4-φ22 | 4-M20 | 30 | 310 | 274 | 360 | 4-φ26 | 4-M24 |
250 | 904 | 165 | 260 | 270 | 26 | 355 | 319 | 405 | 4-φ26 | 4-M24 | 32 | 370 | 330 | 425 | 4-Φ30 | 4-M27 | ||||
300 |
BELL- 250 |
2500 | 612 | 491 | 944 | 178 | 315 | 285 | 28 | 410 | 370 | 460 | 4-φ26 | 4-M24 | 34 | 430 | 389 | 485 | 4-Φ30 | 4-M27 |
Working Pressure PN1.0MPa Size DN350~DN2000
DN mm |
Actuator | H | H1 | B | L | L1 | A | D | D4 | D5 | N-D1 | 4-M | f | b |
350 |
BELL- 250 |
661 | 320 | 190 | 612 | 412 | 491 | 460 | 429 | 505 | 12-φ22 | 4-M20 | 4 | 26 |
400 |
BELL- 400 |
706 | 365 | 216 | 515 | 480 | 565 | 12-φ26 | 4-M24 | 4 | 26 | |||
450 | 740 | 402 | 222 | 565 | 530 | 615 | 16-φ26 | 4-M24 | 4 | 28 | ||||
500 | 746 | 408 | 229 | 620 | 582 | 670 | 16-φ26 | 4-M24 | 4 | 28 | ||||
600 | 833 | 495 | 267 | 725 | 682 | 780 | 16-φ30 | 4-M27 | 4 | 30 | ||||
700 |
BELL- 600 |
915 | 554 | 292 | 580 | 390 | 750 | 840 | 794 | 895 | 20-φ30 | 4-M27 | 5 | 30 |
800 |
BELL- 800 |
974 | 613 | 318 | 620 | 413 | 876 | 950 | 901 | 1015 | 20-φ33 | 4-M30 | 5 | 32 |
900 | 1024 | 663 | 330 | 1050 | 1001 | 1115 | 24-φ33 | 4-M30 | 5 | 34 | ||||
1000 |
BELL- 1000 |
1082 | 721 | 410 | 1160 | 1112 | 1230 | 24-φ36 | 4-M33 | 5 | 34 | |||
1200 |
BELL- 1200 |
1194 | 833 | 470 | 630 | 423 | 1380 | 1328 | 1455 | 28-φ39 | 4-M36 | 5 | 38 | |
1400 | 1304 | 943 | 530 | 1590 | 1530 | 1675 | 32-φ42 | 4-M39 | 5 | 42 | ||||
1600 |
BELL- 1600 |
1424 | 1063 | 600 | 612 | 412 | 936 | 1820 | 1750 | 1915 | 36-φ48 | 4-M45 | 5 | 46 |
1800 | 1524 | 1163 | 670 | 2020 | 1950 | 2115 | 40-φ48 | 4-M45 | 5 | 50 | ||||
2000 |
BELL- 2000 |
1629 | 1268 | 760 | 2230 | 2150 | 2325 | 44-φ48 | 4-M45 | 5 | 54 |
