Manual Gate Valve

Manual Gate Valve

Product Details:

Place of Origin: TIANJIN CHINA
Brand Name: TIANJIN BELL
Certification: ISO9001 CE
Model Number: PZ43H

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: USD 500-1000 PIECE
Packaging Details: plywood case
Delivery Time: 15-30 days
Payment Terms: T/T L/C Paypal Western Union
Supply Ability: 1000 pieces per month
Contact Now
Detailed Product Description
Port Size: DN15-1000 Material: Stainless Steel,cast Steel,cast Iron,etc, Cast Steel, WCB,SS304,SS316, Etc
Temperature Of Media: Medium Temperature Pressure: Medium Pressure
Power: Manual Media: Water,oil,gas,acid,steam,etc

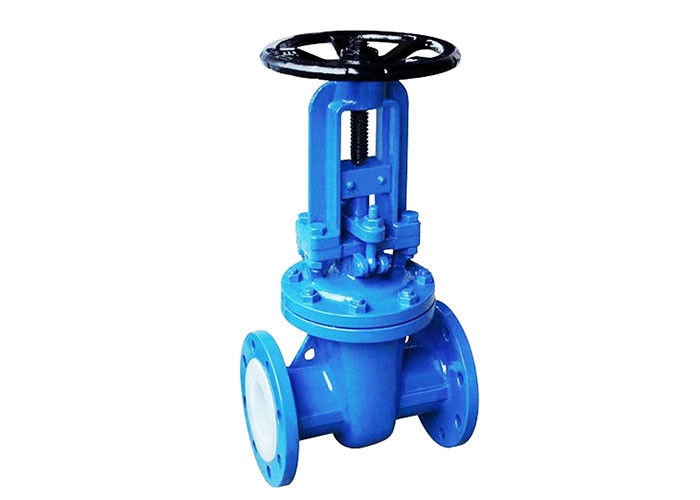

Structure: Gate Product Name: DN65 PN16 PTFE Lined Gate Valve With Handwheel
Disc: Cs,ss,ci,etc Connection Type: Flange, Wafer
Nominal Pressure: PN10,PN 16 Temperature: -10°C To +60°C
Standard: ANSI, DIN, BS, GB,etc Warranty: 12 Month
Accessory: With Hand Wheel Payment: T/T,L/C,Paypal, Western Union, Ect.

Product Features:
·Valve opening and closing member is a gate, the direction of movement of the fluid in a direction perpendicular to the shutter, manual valve can only be fully open and fully closed, can not be adjusted and throttle use.
Use should be avoided in the micro shutter open, because the high-speed flow of medium erosion will accelerate the damage to the sealing surface. Gate for the lifting movement in the valve, disconnect the line the same as the gate dielectric.
· Medium flows unrestricted, non-spoiler, do not reduce the pressure.
· Widely used in petroleum, chemical, power plants and other oil, water, steam pipes, the control opening and closing of the medium.


Properties

Design Standard GB/T12234
Body Material Cast Steel
Operation way Manual
Packing Asbestos, flexible graphite
Seal Alloy steel or hard alloy
Nominal Pressure PN1.6~2.5MPa
Applicable Medium Water, Oil, Gas, etc
Applicable Temperature ≤425℃



Dimension

Manual Gate Valve

Nominal pressure

Nominal diameter,

DN(mm)

Dimension/mm Flange/mm(JB79.1-94 Series 2 Raised Flange)
L H D0 D D1 D2 b f Z-фd
1.6MPa 50 250 358 240 160 125 100 16 3 4-ф18
65 265 373 240 180 145 120 18 3 4-ф18
80 280 435 280 195 160 135 20 3 8-ф18
100 300 500 320 215 180 155 20 3 8-ф18
125 325 614 360 245 210 185 22 3 8-ф18
150 350 674 360 280 240 210 24 3 8-ф23
200 400 818 400 335 295 265 26 3 12-ф23
250 450 969 450 405 355 320 30 3 12-ф25
300 500 1145 560 460 410 375 30 4 12-ф25
350 550 1280 640 520 470 435 34 4 16-ф25
400 600 1450 720 580 525 485 36 4 16-ф30
500 700 1676 720 705 650 608 44 4 20-ф34
600 800 1874 800 840 770 718 48 5 20-ф41
2.5MPa 50 250 358 240 160 125 100 20 3 4-18
65 265 373 240 180 145 120 22 3 8-18
80 280 435 280 195 160 135 22 3 8-18
100 300 500 320 230 190 160 24 3 8-23
125 325 614 360 270 220 188 28 3 8-25
150 350 674 360 300 250 218 30 3 8-25
200 400 818 400 360 310 278 34 3 12-25
250 450 969 450 425 370 332 36 3 12-ф30
300 500 1145 560 485 430 390 40 4 16-ф30
350 550 1280 640 550 490 448 44 4 16-ф34
400 600 1450 720 610 550 505 48 4 16-ф34
