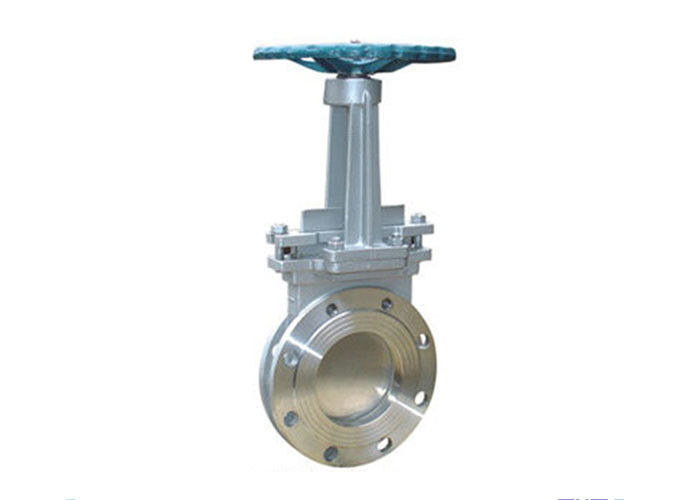

Manual Knife Gate Valve

Product Details:

Place of Origin:	TIANJIN CHINA
Brand Name:	TIANJINBELL
Certification:	ISO9001 CE
Model Number:	PZ73X

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	USD 500-1000 PIECE
Packaging Details:	plywood case
Delivery Time:	15-30 days
Payment Terms:	T/T L/C Paypal Western Union
Supply Ability:	1000 pieces per month

Contact Now

Detailed Product Description

Port Size:	DN15-1000	Application:	General
Material:	Casting, Cast Steel, WCB,SS304,SS316, Ect.	Temperature Of Media:	Medium Temperature
Pressure:	Medium Pressure	Power:	Manual
Media:	Water	Structure:	Gate
Product Name:	Manual Knife Gate Valve Adopted To Corrosive Liquid	Disc:	Knife
Connection Type:	Flange, Wafer	Nominal Pressure:	PN10,PN 16
Temperature:	-10°C To +60°C	Standard:	ANSI, DIN, BS, GB,etc
Accessory:	With Hand Wheel	Warranty:	12 Month
Payment:	T/T,L/C,Paypal, Western Union, Ect.

Product Features:
· Knife gate valve opening and closing member is a gate, the direction of movement of the fluid direction perpendicular shutter, manual knife gate valve can only be fully open and fully closed, can not be adjusted and the throttle.
· Manual knife gate valve having a simple and compact structure, reasonable design, lightweight materials, reliable sealing, light and flexible operation, small size, channel flow, flow resistance is small, light weight, easy to install, easy to disassemble, etc., in the working pressure 1.0 MPa-2.5MPa, temperature -29-650 ℃ under normal work conditions.
· Knife gate valve gate has cut its function, scratch-off adhesive material of the sealing surface, the debris cleared automatically seal leakage, stainless steel gate to prevent corrosion.
· This type valve in the pipeline should generally be installed horizontally.

Property Parameter

Nominal

pressure(MPa)

Shell test(MPa)

Seal test(MPa)

Working temperature

Applicable medium

1.01.6

1.52.4

1.11.8

≤100℃≤425℃

Pulp, waste water, coal slurry, slag, ash and water mixture

Main Spare Parts Material

Body, Bonnet	Disc	Stem	Seal
Stainless steel, carbon steel, gray cast iron	Stainless steel, carbon steel	Stainless steel	Rubber, PTFE, stainless steel, cemented carbide

Dimension

Manual Knife Gate Valve

Nominal pressure	DN	L	D	D1	D2	H	N-M	D0	W(Kg)
1.0 MPa	50	43	160	125	100	285	4-M16	180	8
	65	46	180	145	120	298	4-M16	180	10
	80	46	195	160	135	315	4-M16	220	12
	100	52	215	180	155	365	8-M16	220	14
	125	56	245	210	185	400	8-M16	230	22
	150	56	280	240	210	475	8-M20	280	29
	200	60	335	295	265	540	8-M20	360	38
	250	68	390	350	320	630	12-M20	360	66
	300	78	440	400	368	780	12-M20	400	100
	350	78	500	460	428	885	16-M20	400	119
	400	102	565	515	482	990	16-M22	400	195
	450	114	615	565	532	1100	20-M22	530	285
	500	127	670	620	585	1200	20-M22	530	389
1.6 MPa	50	43	160	125	99	285	4-M16	180	8.5
	65	46	185	145	120	295	4-M16	180	10.7
	80	46	200	160	135	315	8-M16	220	13
	100	52	220	180	155	365	8-M16	220	15
	125	56	250	210	185	400	8-M16	230	23.5
	150	56	285	240	210	475	8-M20	280	31
	200	60	340	295	265	540	12-M20	360	40.7
	250	68	405	355	310	630	12-M22	360	70
	300	78	460	410	375	780	12-M22	400	107
	350	78	520	470	435	885	16-M22	400	129
	400	102	580	525	485	990	16-M27	400	215
	450	114	640	585	545	1100	20-M27	530	305
	500	127	715	650	609	1200	20-M30	530	410
