Pneumatic Wedge Gate Valve with Manual Operation

Pneumatic Wedge Gate Valve with Manual Operation

Pneumatic Wedge Gate Valve with Manual Operation

Product Details:

Place of Origin: TIANJIN CHINA
Brand Name: TIANJIN BELL
Certification: ISO9001 CE
Model Number: Z6S41

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD 500-1500 SET
Packaging Details: plywood case
Delivery Time: 15-20 days
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 1000 SETS per month
Contact Now
Detailed Product Description
Nominal Pressure: 1.6, 2.5, 4.0, 6.4MPa Temperature: -29~425℃(cast Steel)-40~+550℃(stainless Steel)
Nominal Diameter: DN100~500mm Body Material: 304.306.316L.WCB.HT200
Connection Flange: JB/T79.GB913.HG20592 Suitable Medium: Air, Water, Steam, Oil And Corrosive Fluid
Action: Cut Off Type, Modulating Type, Manual Operation. Voltage: 220VAC, 24VAC
Input Signal: 4-20mA/ 1~5VDC/ 0~20mA/ 0~10VDC

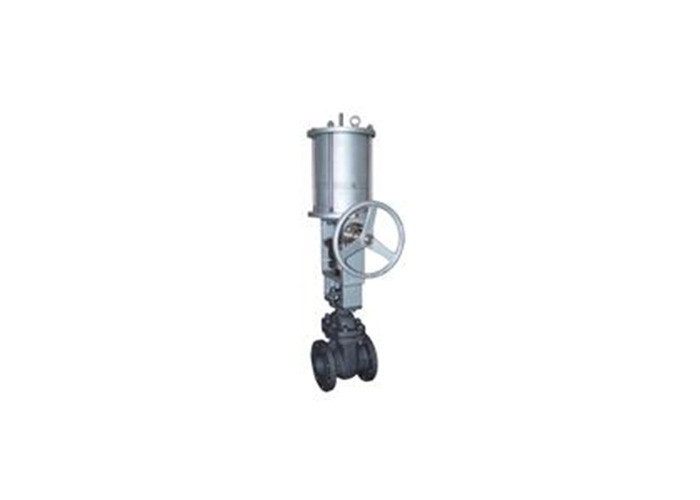

Pneumatic Wedge Gate Valve with Manual Operation



Introduction:
Z6S41 pneumatic wedge gate valve with manual is a low bracket rising stem gate valve with pneumatic actuator (double cylinder with buffer mechanism) and manual and protection mechanism. The valve is adopts double cylinder structure, with double lifting force compared with single cylinder pneumatic gate valve. This structure fundamentally solves the problem of open failure which usually happened in single cylinder pneumatic gate valve. Besides,this gate valve has a buffer mechanism is another advantage. It can effectively reduce the attrition between sealing surfaces.


Main Parameters:

Nominal Pressure :1.6,2.5.4.0.6.4MPa
Temperature:-29~425℃(cast steel)-40~+550℃(stainless steel)
Nominal Diameter:DN100~500mm
Body Material: 304.306.316L.WCB.HT200
Connection Flange: JB/T79.GB913.HG20592
Suitable Medium: air, water, steam, oil and corrosive fluid
Action: cut off type, modulating type, manual operation.
Voltage: 220VAC, 24VAC
Input Signal:4-20mA/ 1~5VDC/ 0~20mA/ 0~10VDC


Performance Specifications:

Body:

Model Pressure(MPa) Test Pressure
PN(MPa)
Working Temperature(℃)
120 200 225 250 300 350 400 425
Strength Seal Working Pressure(MPa)
Z6S41T-10 1.6 2.4 1.6 - 1.6 - 1.5 1.3 1.2 1.0 0.9
Z6S41H-25 2.5 3.8 2.5 - 2.5 - 2.3 2.0 1.8 1.6 1.4
Z6S41H-40 4.0 6.0 4.0 - 4.0 - 3.6 3.2 2.8 2.6 2.2
Z6S41H-64 6.4 9.6 6.4 - 6.4 - 5.7 5.2 4.6 3.8 3.6



Cylinder:

Model Nominal Pressure PN(MPa)

Seal Pressure

PN(MPa)

Working Pressure

PN(MPa)

Z6S41T-10
Z6S41H-25
Z6S41H-40
Z6S41H-64
0.6 0.6 0.4~0.6



Dimension:

Pneumatic Wedge Gate Valve with Manual Operation

DN D D1 D2 b f L H Ds D0 Z-d Air recourse connector

Weight

Kg

50 160 125 100 16 3 250 865 160 250 4-18 M12×1.25 42
80 195 160 135 20 3 280 1100 160 300 8-18 54
100 215 180 155 20 3 300 1200 160 350 8-18 100
150 280 240 210 24 3 350 1380 219 400 8-23 135
200 335 295 265 26 3 400 1580 273 400 12-23 270
250 405 355 320 30 3 450 1710 273 400 12-25 M20×1.5 350
300 460 410 375 30 4 500 1880 325 500 12-25 480
350 520 470 435 34 4 550 2180 426 500 16-25 570
400 580 525 485 36 4 600 2325 459 550 16-30 900
450 640 585 545 40 4 650 2570 500 550 20-30 1560
500 705 650 608 44 4 700 2800 600 600 20-34 M24×1.5 1820
600 840 770 718 48 5 800 3010 600 600 20-41 M27×1.5 2850
