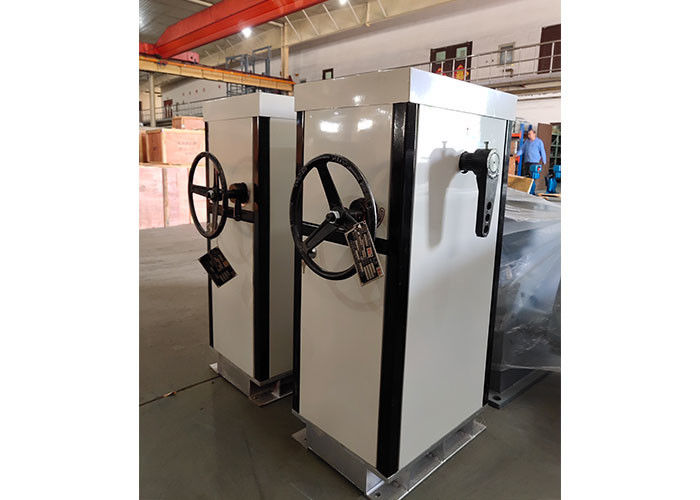

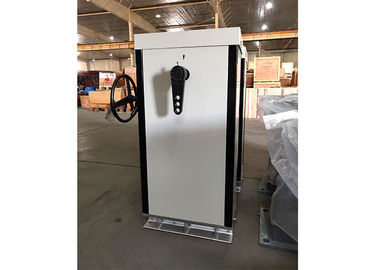

BSL Series actuator

BSL Series actuator

    • BSL Series actuator
    • BSL Series actuator
  • BSL Series actuator

    Product Details:

    Place of Origin: Tianjin, China (Mainland)
    Brand Name: TIANJIN BELL
    Certification: ISO9001 CE
    Model Number: BSL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PIECE
    Packaging Details: plywood case
    Delivery Time: 10-20 days
    Payment Terms: T/T L/C Western Union Paypal
    Supply Ability: 1000 pieces per month
    Contact Now
    Detailed Product Description
    Input Signal: 4-20mADCElectric Signal;0.02-0.1MPaPneumatic Signal;Binary Signals Power Supply: 220±10%VAC
    Output Angle: 0-90° Air Pressure: 0.35-0.8MPa
    Basic Error: ≤±1.5% Deviation: <1%
    Deadline: <0.6% Static Gas Consumption: 1500L/h
    Environmental Temperature: -25~+60℃

    Use and Features
    BSLseries pneumatic long distance actuators is powered by compressed air,accepting a regulating unit or given 4~20mA DC signal or 0.02-0.1 MPa airpressure signal. The input signal is changed to the corresponding displacement,resulting in proportional adjustment and quick open/off two type action toregulate damper, baffles, valves, etc. It is one of important parts in theautomatic regulating system, widely used in electric power, petroleum,chemical, metallurgy, shipbuilding, textile and other industrial sectors. Thisproduct are of simple structure, easy maintenance, low cost, long life, easyadjustment, output large torque.

    Main performance and technical parameters
    1. Input signal: 4-20mADCElectric signal;
    0.02-0.1MPaPneumatic signal;
    Binary signals
    2. Power Supply: 220±10%VAC
    3. Output angle: 0-90°
    4. Air pressure: 0.35-0.8MPa
    5. Basic error: ≤±1.5%
    6. Deviation: <1%
    7. Deadline: <0.6%
    8. Static gas consumption: 1500L/h
    9. Environmental temperature: -25~+60℃
    10. Environmental relative humidity:≤95%
    11. Light travel time: pls see Sheet 1
    12. Cylinder diameter and stroke: pls see Sheet 1
