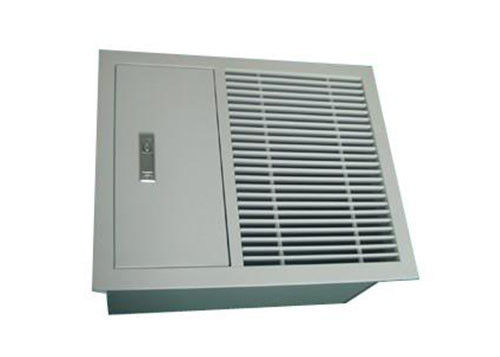

Exhaust Smoke Outlet

Application:

Multi-blade exhaust smoke outlet is applicable to the exit of smoke extraction systems. It is applicable to the smoke –proof room and the exit of air supply system in staircase. Usually they are installed in the wall. Special design for exhaust smoke window could be available to meet customers’ special requirements.

Structure and Characteristic:

Multi-blade exhaust smoke outlet is constructed by damper body, operation device and aluminum facing. They can divide into four models according to the operation device:
1) Multi-blade exhaust damper. Its operation device is installed in the body. Once fire signal appear, the electromagnet will take pulling action to open the damper, and output signal-line linkage.

2) Remote-control Multi-blade exhaust smoke outlet. Its operation device remote control by the connection of wire ropes. Once fire signal appear, the electromagnet will used remote device to operate on the red button, manually open the damper, and output signal-line linkage.

3) Its operation device is installed in the body. Once fire signal appears, the electromagnet will use remote device to operate on the red button, manually pull the rope to open the damper, and output signal-line linkage. Rate of operation at 280℃, the damper closed, open output signal and linkage control, and interlock with other device in the fire-proof system.

4) Its operation device remote control by the connection of wire ropes. Once fire signal appears, the electromagnet will used remote device to operate on the red button, manually open the damper, and output signal-line linkage.

5) Access door for remote control multi-blade exhaust smoke outlet and near-control multi-blade exhaust smoke damper can be reduced to a minimum of 50. Multi-blade exhaust damper is rectangular, and can be installed horizontally or vertically.
