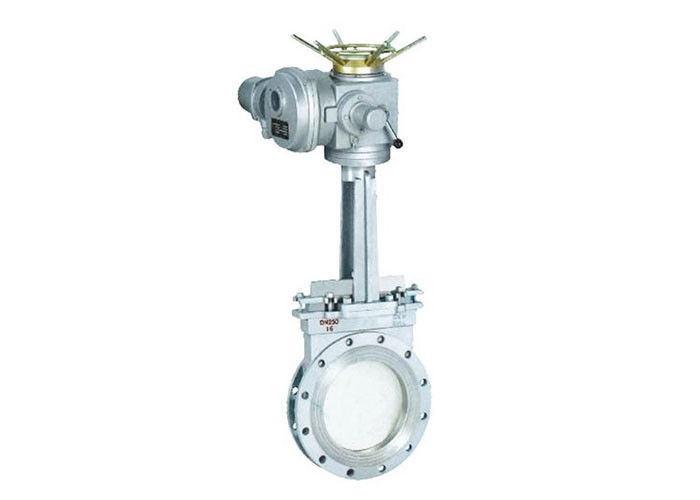

Product Features:
· Ultrashort structure length ,saving material, can greatly reduce the overall weight of the piping system.
· Occupy the available space is small, can effectively support the strength pipes,
reduce the possibility of piping vibration.
· Gate plate selection austenitic stainless steel, corrosion resistance is greatly improved,
can effectively prevent leakage caused by gate plate corrosion.
· With multi turn electric device, so that the valve disc do up and down linear motion
to achieve remote control of opening or closing the valve.
· Used in sewage, paper, chemicals, coal, sugar, and other fields, particularly suitable
for the paper industry in the pipeline for regulating and throttling.
Electric Actuator Main Parameters:
Power Supply: 380V 50Hz (for selected);
Working Environment: Environmental Temperature: -20℃~+60℃; Relative Humity:≤90(25℃)(surrounding air does not have corrosive elements);
Protection Grade: IP55;
Working Duty: Short duty, rated working time is 10 minutes.
Main Spare Parts Material
| Spare Parts |
Description |
| Material |
Marks |
| Body |
Carbon steel,
Stainless steel
|
WCB,CF8(304),CF3(304L),CF8M(316),CF3M(316L) |
| Stem |
Stainless steel |
304,316,2Cr13 |
| Disc |
Stainless steel |
304,316,304L,316L,2Cr13 |
| Seal |
Hard alloy, PTFE |
|
| Packing |
V PTFE, Flexible graphite |
|
Dimension
Unit:mm
|
Nominal pressure
MPa
|
Nominal diameter
DN(mm)
|
L |
D |
D1 |
D2 |
H |
n-M |
D0 |
| 1.0 |
50 |
43 |
160 |
125 |
100 |
330 |
4-M16 |
180 |
| 65 |
46 |
180 |
145 |
120 |
360 |
4-M16 |
180 |
| 80 |
46 |
195 |
160 |
135 |
390 |
4-M16 |
220 |
| 100 |
52 |
215 |
180 |
155 |
440 |
8-M16 |
220 |
| 125 |
56 |
245 |
210 |
185 |
510 |
8-M16 |
230 |
| 150 |
56 |
280 |
240 |
210 |
600 |
8-M20 |
280 |
| 200 |
60 |
335 |
295 |
265 |
700 |
8-M20 |
360 |
| 250 |
68 |
390 |
350 |
320 |
840 |
12-M20 |
360 |
| 300 |
78 |
440 |
400 |
368 |
960 |
12-M20 |
400 |
| 350 |
78 |
500 |
460 |
428 |
1110 |
16-M20 |
400 |
| 400 |
102 |
565 |
515 |
482 |
1250 |
16-M22 |
400 |
| 450 |
114 |
615 |
565 |
532 |
1380 |
20-M22 |
530 |
| 500 |
127 |
670 |
620 |
585 |
1530 |
20-M22 |
530 |
| 600 |
154 |
780 |
725 |
685 |
1800 |
20-M27 |
600 |
| 700 |
165 |
895 |
840 |
800 |
2150 |
24-M27 |
600 |
| 800 |
190 |
1010 |
950 |
898 |
2420 |
24-M30 |
680 |
| 900 |
203 |
1110 |
1050 |
1005 |
2680 |
28-M30 |
680 |
| 1000 |
216 |
1220 |
1160 |
1115 |
3100 |
28-M30 |
700 |
| 1200 |
254 |
1450 |
1380 |
1325 |
3450 |
32-M36 |
800 |
| 1.6 |
50 |
43 |
160 |
125 |
99 |
330 |
4-M16 |
180 |
| 65 |
46 |
185 |
145 |
120 |
360 |
4-M16 |
180 |
| 80 |
46 |
200 |
160 |
135 |
390 |
8-M16 |
220 |
| 100 |
52 |
220 |
180 |
155 |
440 |
8-M16 |
220 |
| 125 |
56 |
250 |
210 |
185 |
510 |
8-M16 |
230 |
| 150 |
56 |
285 |
240 |
210 |
600 |
8-M20 |
280 |
| 200 |
60 |
340 |
295 |
265 |
700 |
12-M20 |
360 |
| 250 |
68 |
405 |
355 |
310 |
840 |
12-M22 |
360 |
| 300 |
78 |
460 |
410 |
375 |
960 |
12-M22 |
400 |
| 350 |
78 |
520 |
470 |
435 |
1110 |
16-M22 |
400 |
| 400 |
102 |
580 |
525 |
485 |
1250 |
16-M27 |
400 |
| 450 |
114 |
640 |
585 |
545 |
1380 |
20-M27 |
530 |
| 500 |
127 |
715 |
650 |
609 |
1530 |
20-M30 |
530 |
| 600 |
154 |
840 |
770 |
720 |
1800 |
20-M36 |
600 |
| 700 |
165 |
910 |
840 |
788 |
2150 |
24-M36 |
600 |
| 800 |
190 |
1025 |
950 |
898 |
2420 |
24-M36 |
680 |
| 900 |
203 |
1125 |
1050 |
998 |
2680 |
28-M36 |
680 |
| 1000 |
216 |
1255 |
1170 |
1110 |
3100 |
28-M42 |
700 |
| 1200 |
254 |
1485 |
1390 |
1325 |
3450 |
|
|
