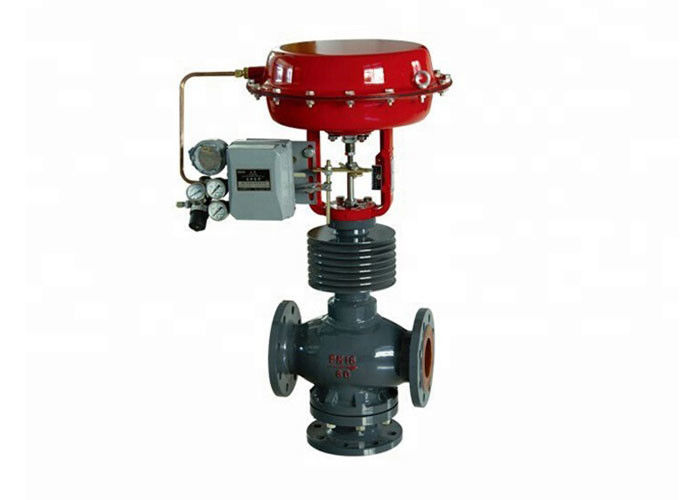

Pneumatic 3 Way Diaphragm Control Valve

Pneumatic 3 Way Diaphragm Control Valve

Pneumatic 3 Way Diaphragm Control Valve

Product Details:

Place of Origin: TIANJIN CHINA
Certification: ISO9001 CE
Model Number: ZJHX

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: USD 600-1500 PIECE
Packaging Details: plywood case
Delivery Time: 15-30 days
Payment Terms: T/T,L/C,Paypal,Western Union
Supply Ability: 1000pieces per month
Contact Now
Detailed Product Description
Pressure Class: 1.6MPa,4.0MPa,6.4MPa Connected Way: Flange Connection According To JB79-59
Temperature Scope: Normal-20℃~+230℃ Air Cooling Fin-60℃~+450℃ Action Way: Positive (air To Close Type)or Back Action (air To Open Type)
Flow Characteristic: Equal Percent/linear

Pneumatic diaphragm control valve is the terminal industrial process measurement and control system control device, is composed by pneumatic diaphragm actuator, direct through single-seat,double seat and sleeve valve, etc., which can automatically change the valve trim position according to the control signal system , changing the flow area between the valve trim and the valve seat, to change the valve drag coefficient, to realize the regulation for the medium flow, pressure and level and other process parameters adjustment.

Pneumatic diaphragm valve use dual-oriented structure, equipped with multiple spring actuator, with a compact, light weight, sensitive, valve capacity big, flow characteristics of precision, easy to disassembly. Widely used for precise control of gas, liquid, steam and other media, process parameters such as pressure, flow, temperature, level maintained at a set value. Especially for the smaller amount of pressure and small leakage workplace.


Pneumatic 3 Way Diaphragm Control Valve Technical Parameters:

Control Valve Body
Body Style Tee cast ball valve
Nominal Diameter 32mm
Nominal 1.6
Connection Flanged Press JB78-59 JB79-59
Material WCB
Control Valve Bonnet
Normal temperature -20 ~ + 200 ℃
Cooling type -40 ~ + 450 ℃
Gland form Bolt Clamp
Pneumatic Actuator Data
Type Multi-spring diaphragm actuator
Diaphragm Material Nitrile rubber clamp reinforced polyester fabric
Spring Range 0.02 ~ 0 1,0.04 ~ 0.20MPa
Gas Pressure 0.14 0.16 0.28MPa
Gas Supply Connector M10 × 1
Ambient Temperature -30 ~ + 70 ℃
Control Valve Performance:
Leakage: standard ANSIB 16.104IV level, less than 0.01% of the nominal value of Kv
The basic error ± 1%
Hysteresis 1% (with positioner) 3% (without positioner)
Linear ± 1% (with positioner) ± 5% (without positioner) Note: Use the V-type PTFE packing
Adjustable Ratio 30: 1


Pneumatic 3 Way Diaphragm Control Valve
