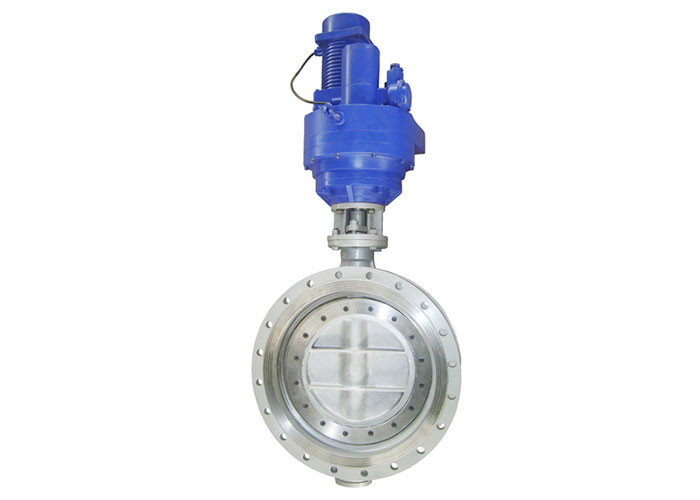

Name: Economical ZAJWSY Flange Three Eccentric Electric Butterfly Valve
Brand: TIANJIN BELL
SKU: ZAJWSY
Price: 500 USD

Home Products Electric On/off Butterfly Valve

Economical ZAJWSY Flange Three Eccentric Electric Butterfly Valve

Product Details:

Place of Origin:	Tianjin, China (Mainland)
Brand Name:	TIANJIN BELL
Certification:	ISO9001 CE
Model Number:	ZAJWSY

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD 500-1000 PIECE
Packaging Details:	plywood case
Delivery Time:	15-30 days
Payment Terms:	T/T L/C Western Union Paypal
Supply Ability:	1000 pieces per month

Contact Now

Detailed Product Description

Application:	Application	Material:	Cast Iron, Ductile Iron,Casting Steel / WCB,Stainless Steel
Temperature Of Media:	≤425 ℃ Based On Material	Pressure:	PN1.0,1.6MPa;150lb,300lb;10K,20K,etc
Media:	Water, Oil, Steam,Nitric Acid And Other Corrosive Media,etc	Port Size:	DN50-800 (2"~32")
Structure:	Butterfly	Actuator Type:	BAT,BGT, BAW,etc
Actuator Control Type:	On-off Type, Regulating Type	Regulating Type Signal:	4-20mA, 0-10V,etc
Actuator Acting Type:	Single Acting, Double Acting	Color:	To Order
Standard Or Nonstandard:	Standard

Product Features:
·Using DKJ series electric actuator,easy for installation and maintenance, economic.
·Good performance for anti-corrosion, anti-high temperature and anti-abrasion.
·Good mechanical performance and sealing performance can achieve zero leakage.

Electric Actuator Main Parameters:
· Input Signal:On/off
· Output Signal: On/off or 4-20mA
· Basic Error: ±2.5%;
· Deadline: ≤3%(continuously adjustable)
· Power Supply: Single-Phase 220V 50Hz;
· Working Environmental Temperature: -10℃~+55℃
· Humity: ≤95%(surrounding air does not have corrosive elements);

Economical ZAJWSY Flange Three Eccentric Electric Butterfly Valve

DN mm	Electric actuator	Output torque, Nm	L	L1	H	B	D	H1	PN1.0MPa
DN mm	Electric actuator	Output torque, Nm	L	L1	H	B	D	H1	H4	D0	D3	D2	N-D1	4-M
100	DKJ-3100	250	270	330	622	127	120	105	22	180	156	220	4-Φ18	4-M16
125	DKJ-3100	250	270	330	637	140	142	110	22	210	184	250	4-Φ18	4-M16
150	DKJ-4100	600	368	428	692	140	166	135	24	240	211	285	4-φ22	4-M20
200	DKJ-5100	1600	424	484	813	152	216	160	24	295	266	340	4-φ22	4-M20
250	DKJ-5100	1600	424	484	853	165	260	270	26	350	319	395	4-φ22	4-M20
300	DKJ-6100A	2500	424	484	893	178	315	285	26	400	370	445	4-φ22	4-M20

DN mm	Electric actuator	Output torque, Nm	L	L1	H	B	D	H1	PN1.6MPa						PN2.5MPa
DN mm	Electric actuator	Output torque, Nm	L	L1	H	B	D	H1	H4	D0	D3	D2	N-D1	4-M	H4	D0	D3	D2	N-D1	4-M
100	DKJ- 3100	250	270	330	622	127	120	105	22	180	156	220	4-Φ18	4-M16	24	190	156	235	4-φ22	4-M20
125	DKJ- 3100	250	270	330	637	140	142	110	22	210	184	250	4-Φ18	4-M16	26	220	184	270	4-φ26	4-M24
150	DKJ- 4100	600	368	428	692	140	166	135	24	240	211	285	4-φ22	4-M20	28	250	211	300	4-φ26	4-M24
200	DKJ- 5100	1600	424	484	813	152	216	160	24	295	266	340	4-φ22	4-M20	30	310	274	360	4-φ26	4-M24
250	DKJ- 5100	1600	424	484	853	165	260	270	26	355	319	405	4-φ26	4-M24	32	370	330	425	4-Φ30	4-M27
300	DKJ- 6100A	2500	424	484	893	178	315	285	28	410	370	460	4-φ26	4-M24	34	430	389	485	4-Φ30	4-M27
