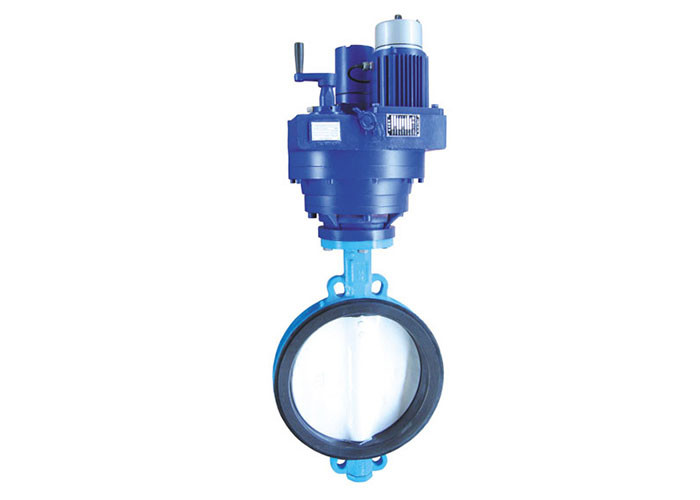

Economical ZAJWA Wafer Center Line Electric Butterfly Valve

Economical ZAJWA Wafer Center Line Electric Butterfly Valve

Economical ZAJWA Wafer Center Line Electric Butterfly Valve

Product Details:

Place of Origin: TIANJIN CHINA
Brand Name: TIANJIN BELL
Certification: ISO9001 CE
Model Number: ZAJWA

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD 500-1000 PIECE
Packaging Details: plywood case
Delivery Time: 15-20 days
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 1000 pieces per month
Contact Now
Detailed Product Description
Place Of Origin: Tianjin, China (Mainland) Brand Name: Brand Name
Model Number: BELLWA, ZAJWA, BELLWF, ZAJWF, BELLWSY, ZAJWSY, BELLWK, ZAIWK Application: General
Material: Customized Temperature Of Media: Medium Temperature
Pressure: Medium Pressure Power: Electric
Media: Water Port Siz: 1 1/2''-80''

Product Features:
·Compact structure, reliable sealing performance, long service life
·Applied to control large flow, low pressure fluid, and adjusting the solid powder,closure and so on.
·Widely used in fluid pipeline control system if water plant, power plant, steel mill, paper mill, chemical plant and buildings, acting as regulator of medium in the pipeline.

·Using DKJ series electric actuator,easy for installation and maintenance, economic.


Performance Specification:
Body Material: Cast Iron, Cast Steel, Stainless Steel
Seal Ring Materials: EPDM -40~+125℃
NBR -20~+82℃
SI -70~+150℃
VITON -23~+150℃
PTFE +10~+150℃
Applicable medium: Fresh water, sewage, sea water, air, steam, food, drug, various oil, acid, alkali, salt, etc



Electric Actuator Main Parameters:
· Input Signal: On/off
·Output Signal: On/off or 4-20mA
· Basic Error: ±2.5%;
· Deadline: ≤3%(continuously adjustable)
· Power Supply: Single-Phase 220V 50Hz;
· Working Environmental Temperature: -10℃~+55℃
· Humity: ≤95%(surrounding air does not have corrosive elements);


Dimension

Nominal diameter DN Actuator

Torque

Nm

H D n-φ C

L



L1



H1
mm inch
40 DKJ-2100 100 65 110 4-φ18 33 234 294 515
50 2" 80 120 4-φ23 42 566
65 Economical ZAJWA Wafer Center Line Electric Butterfly Valve 89 136.2 4-φ26.5 44.7 580
80 3" 95 160 8-φ18 45.2 586
100 4" DKJ-3100 250 114 185 4-φ24.5 52.1 270 330 642
125 5" 127 218 4-φ23 54.4 655
150 6" 139 238 4-φ25 55.8 668
200 8" 175 295 4-φ25 60.6 702
250 10" 203 357 4-φ29 65.6 734
300 12" DKJ-4100 600 242 407 4-φ29 76.9 368 428 834
350 14" 267 4-φ30 76.5 865
400 16" DKJ-5100 1600 301 Economical ZAJWA Wafer Center Line Electric Butterfly Valve 4-φ26 86.5 424 484 1003
450 18" 327 Economical ZAJWA Wafer Center Line Electric Butterfly Valve 4-φ26 105.6 1025
500 20" DKJ-6100A 2500 361 Economical ZAJWA Wafer Center Line Electric Butterfly Valve 4-φ26 131.8 Foot-mounted electric actuator is suggested.
600 24" 459 20-φ30 152
700 28" DKJ-6100 4000 527 840 24-φ30 165
800 32" 594 950 24-φ33 190
900 36" DKJ-7100 6000 653 1050 28-φ33 205
1000 40" 718 1160 28-φ33 218
