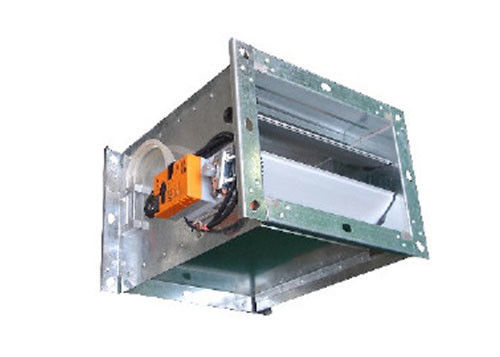

VAV Damper/Variable Air Damper

VAV Damper/Variable Air Damper

VAV Damper/Variable Air Damper

Product Details:

Place of Origin: TIANJIN CHINA
Brand Name: BELL
Certification: ISO9001 CE
Model Number: VAV

Payment & Shipping Terms:

Minimum Order Quantity: 10 sets
Price: USD 100 -600 set
Packaging Details: carton box
Delivery Time: 7-20 days
Payment Terms: T/T, L/C ,Paypal ,Western Union
Supply Ability: 1000 sets per week
Contact Now
Detailed Product Description
Material: Galvanized Steel Sheet Size: Customized
Control: Motorized Actuator: Belimo

Product Introduction:
This valve is used for air volume control in variable air volume system.This flow valve is consist of mechanical parts (multi-blade valve plate,shell,differential pressure sensor)and electronic control unit.They have been equipped before they delivery and complete the hose connection and wiring.The airflow control adopts closed loop control,need external power supply.The electronic control unit for Belimo products.Each set equipment will be set to the required air volume,and through the performance test.Flange on both ends of the equipment are used to connect duct.



Product Features:
♦Electric air volume control
♦suit for supply air and exhaust air
♦Air volume range:5:1
♦pressure differential range:20~1000Pa
♦Air volume control precision is high, the need to ensure that air duct layout to meet the best flow characteristics
♦Set up air or programming and do the performance test before delivery.
♦Horizontal or vertical installation
♦can be completely shut down completely.
♦Good air tightness
♦Working temperature:0℃~50℃
♦Regulator for mechanical parts, maintenance free.


Structural features:
-rectangular,fastness frame
-duct flange on both side
-Split blade,rotate through the internal gear on both sides.
-bearing position with O type ring seal.



Cabient
-cabient, shaft and fittings are made of galvanized steel sheet.
-Valve plates and piezometric tube with aluminum
-Gear with antistatic plastic (ABS), heat resistance and 50 ℃



Product

Features

1 Electric air volume control
2 suit for supply air and exhaust air
3 Air volume range:5:1
4 pressure differential range:20~1000Pa
5 Air volume control precision is high, the need to ensure that air duct layout to meet the best flow characteristics
6 Set up air or programming and do the performance test before delivery.
7 Horizontal or vertical installation
8 It can be completely shut down completely.
9 Working temperature:0℃~50℃
10 Regulator for mechanical parts, maintenance free. Good air tightness

Structural Features



1 Rectangular and round, fastness frame
2 duct flange on both side
3 Split blade, rotate through the internal gear on both sides.
4 Bearing position with O type ring seal.

Cabinet



1. cabinet, shaft and fittings are made of galvanized steel sheet.
2. Valve plates and piezometric tube with aluminum
3. Gear with antistatic plastic (ABS), heat resistance and 50 ℃
