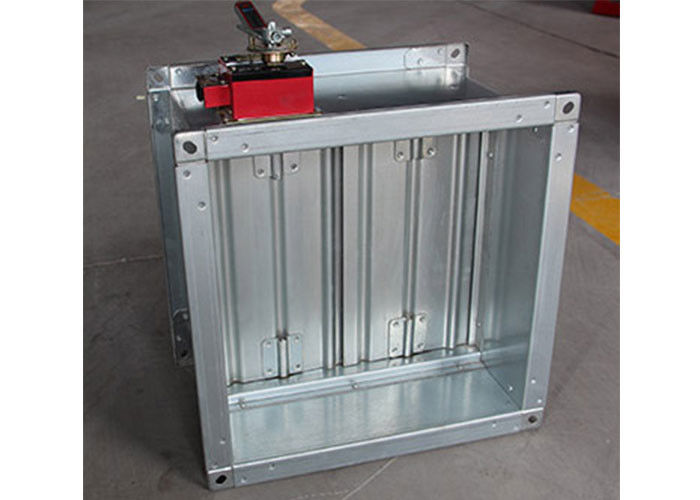

Motorized Air Damper

Motorized Air Damper

Motorized Air Damper

Product Details:

Place of Origin: TIANJIN CHINA
Brand Name: BELL
Certification: ISO9001 CE
Model Number: VD

Payment & Shipping Terms:

Minimum Order Quantity: 10 sets
Price: USD 50 -580 set
Packaging Details: carton box
Delivery Time: 7-20 days
Payment Terms: T/T, L/C ,Paypal ,Western Union
Supply Ability: 1000 sets per week
Contact Now
Detailed Product Description
Material: Galvanized Steel Sheet, Stainless Steel Sheet Size: Customized
Control: Motorized Actuator Torque: 2Nm~40Nm

Product Introduction:


The motorized air damper is same as manual regulating damper regarding to size and substrate structure, but it is electromotive and switch automatically. It is a volume controller installed in the air duct of air conditioning and ventilation systems, and the open degree of blades is controlled by electric motor. This product is applied to air conditioning and air purification projects of small and medium-sized chemical fertilizer, light industry, metallurgy, textile and senior civil construction, industrial plant. The material could be sprayed armor plate, galvanized plate, stainless steel or aluminum.





Technical Specifications:



Material Galvanized steel sheet, galvanized steel sheet
Size Can be designed to the size of air ducts
Control Motorized, on/off type
Feature a. It is installed on the air duct of ventilation system to adjusting the air volume and control the air velocity.
b. It is operated open and close the damper by power. Output electric switch signal.
c. It also has manual button which can open can close by handle.
Actuator 1. Power supply: 24VAC/DC, 48VDC, 100...240VAC
2. Motor power: 3W
3. Sequence time: 20~180sec
4. Actuator torque: 2Nm~32Nm
5.Control: on/off or modulating (control signal: 0(2)…10V DC or 0(4)…20Ma)
6. Selectable direction of rotation. Adjustable angle of rotation.





Structure:



Motorized Air Damper









































Air Damper Details Show:



Motorized Air Damper



Motorized Air Damper



Various Air Damper&Fire Dampers for your choose:



Motorized Air Damper





Motorized Air Damper
