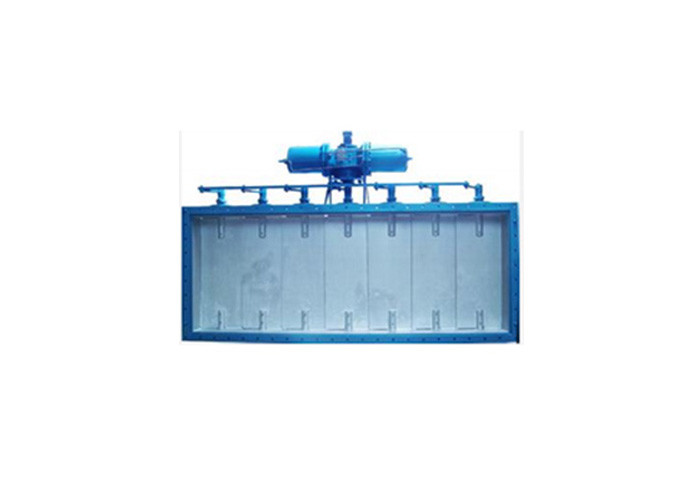

Name: BAWCVB Type Pneumatic Louver valve
Brand: TIANJIN BELL
Price: 100 USD

Home Products Industrial Pneumatic Damper

BAWCVB Type Pneumatic Louver valve

Product Details:

Place of Origin:	TIANJIN CHINA
Brand Name:	TIANJIN BELL
Certification:	ISO9001 CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	USD 100-900 PIECE
Packaging Details:	Plywood case
Delivery Time:	10-20 days
Payment Terms:	T/T L/C Western Union Paypal
Supply Ability:	1000 pieces per month

Contact Now

Detailed Product Description

Product Features
· BAWCVB type pneumatic Louver valve match with BAW series pneumatic actuators,Adjustable air flow of larger diameter dampers
· The valve has a variety of materials,Adapt to different working temperatures.
·matched pneumatic actuator must need a pneumatic positioner,Adjustable damper opening degree ,High precision adjustment.

Valve technology parameter

Nominal pressure PN	0.01MPa
Nominal diameter DN	300x400～2600x2400mm
General medium	Air,Flue gas
Temperature℃	≤300
Leakage	≤1-2%

The main parameters of the actuator
1,the use of media: clean, dry,and non-corrosive compressed air
2,working air pressure: 0.3 ~ 0.7MPa
3,ambient temperature: Standard: -20 ℃ ~ + 80 ℃
High temperature: -20 ℃ ~ + 180 ℃
4,rotation angle: 90 ° ± 3 °
5,Matched pneumatic positioner input and output signal: 4 ~ 20mA (other signals can be customized)

Dimensions

BAWCVB Type Pneumatic Louver valve

NOTE: If users need for other dimension,could be customized.

DN	L	A	B	L1	L2	C1	C2	t1	n1	t2	n2	n	d
600x700	175	600	700	728	828	670	770	94	5	95	6	30	14
600x800			800		928		870			94	7	32
600x900			900		1028		970			95	8	34
600x1000			1000		1128		1070			94	9	36
700x500		700	500	828	628	770	570	95	6	95	4	28
700x700			700		828		770			95	6	32
700x800			800		928		870			94	7	34
800x800		800	800	928	928	870	870	94	7	94	7	36
800x900			900		1028		970			95	8	38
800x1000			1000		1128		1070			94	9	40
800x1200			1200		1328		1270			105	10	42
800x1600			1600		1728		1670			96	15	52
900x400		900	400	1028	528	970	470	95	8	90	3	30
900x700			700		828		770			95	6	36
900x1200			1200		1328		1270			105	10	44
1000x600		1000	600	1128	728	1070	670	94	9	94	5	36
1000x700			700		828		770			95	6	38
1000x800			800		928		870			94	7	40
1000x900			900		1028		970			95	8	42
1000x1000			1000		1128		1070			94	9	44
1200x600	215	1200	600	1282	744	1282	682	96	9	96	5	36
1200x700			700		844		782			96	6	38
1200x800			800		944		882			96	7	40
1200x1000			1000		1144		1082			96	9	44
1200x1200			1200		1344		1282			116	9	44
1250x1000		1250	1000	1394	1144	1332	1082	110	10	96	9	46
1250x1250			1250		1344		1332			110	10	48
1250x1500			1500		1644		1582			112	12	52
1400x700		1400	700	1544	844	1482	782	105	12	90	6	44
1400x800			800		944		882			96	7	46
1400x900			900		1044		982			96	8	48
1400x1000			1000		1144		1082			96	9	50
1400x1200			1200		1344		1282			116	9	50
1500x800		1500	800	1644	944	1582	882	112	12	96	7	46
1500x900			900		1044		982			96	8	48
1500x1000			1000		1144		1082			96	9	50
1500x1200			1200		1344		1282			116	9	50
1600x1000	275	1600	1000	1756	1156	1688	1088	112	13	96	9	52	18
1600x1200			1200		1356		1288			96	11	56
1600x1400			1400		1556		1488			96	13	60
1600x1600			1600		1756		1688			105	14	62
1800x900		1800	900	1956	1056	1888	988	110	15	96	8	54
1800x1000			1000		1156		1088			96	9	56
1800x1200			1200		1356		1288			96	11	60
1800x1400			1400		1556		1488			96	13	64
1800x1800			1800		1956		1888			110	15	68
