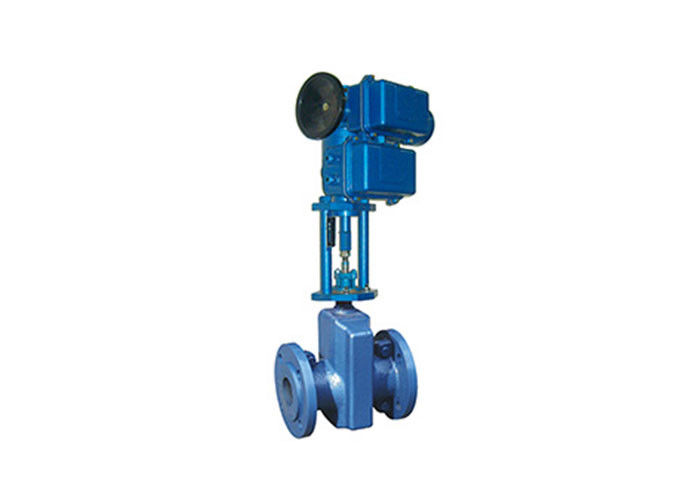

Electric control Pinch Valve--Introduced BELLAGJ Type

Electric control Pinch Valve--Introduced BELLAGJ Type

Electric control Pinch Valve--Introduced BELLAGJ Type

Product Details:

Place of Origin: TIANJIN CHINA
Brand Name: TIANJIN BELL
Certification: ISO9001 CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: USD 100-900 PIECE
Packaging Details: plywood case
Delivery Time: 10-20 days
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 1000 pieces per month
Contact Now
Detailed Product Description
Input And Output Signals: 4—20mA DC; Input Channel Resistance: 250ohm;
Basic Error: ±1%; Dead Zone: 0.5%--3%(Could Be Adjusted According To System Requirements);
Supply Voltage: 3Phase 380V 50Hz 1phase 220V 50Hz(Other Power Supply Can Be Customized); Working Ambient Temperature: Integral Type -10℃~+55℃,Discrete Type -25℃~+70℃ ;

Profile
Pinch Valves, also known as hose valve,It's our new product according to the latest standards to designed and manufactured ,In modern industry,Some Solid or Liquid medium (containing granules, powders, fibers, sticky pulp) of abrasive substance or chemical processes with corrosive media,will transport by pipeline,Pinch Valve is the best choice.
It can be used in:
Sewage treatment plants (sludge, sand cleaning, raw sewage, lime, carbon slurry),
Power plants (FGD systems, ash handling system, coal transport),
Mining (tailings, flotation control,mud pipelines,tailings filling,many areas of various other slurry),
Chemistry (corrosive and abrasive media, powder, granules) and paper mills, pulp mills, electronics industry, food industry, cement, sand, glass etc.
Suitable for all corrosive, non-corrosive gas, liquid, semi-liquid and solid powder medium, To be intercepted and regulation,It can be installed in any position.


Feature
1,Unobstructed flow path, full bore
2,Low flow resistance
3,Without blocking
4,Could close in Zero leakage when there are residual particles
5,Without gaps and corners hinder valve operation
6,Low maintenance costs
7,Simple design, free from external adverse environmental impacts


Main parameters of the actuator
· Input and output signals: 4—20mA DC;
· Input channel resistance :250ohm;
· Basic error: ±1%;
· Dead zone:0.5%--3%(Could be adjusted according to system requirements);
· Supply Voltage :3Phase 380V 50Hz 1phase 220V 50Hz(Other power supply can be customized);
· Working ambient temperature: Integral Type -10℃~+55℃,Discrete Type -25℃~+70℃ ;
· Working environment humidity: ≤85%,Ambient air does not contain corrosive properties;
· Protection class: IP65,Bus Type& Intelligent Type:IP67;
· Communication Interface:Bus Type compliance with international standard protocol PROFIBUS-DP.



Model Description

Electric control Pinch Valve--Introduced BELLAGJ Type

Main performance specifications

Nominal

pressure

PN(MPa)

Test pressure

MPa

Operating

temperature

(℃)

Suitable medium
Strength Seal
0.6 0.9 0.66 ≤80℃ Water, Sewage, Weak acid ect.
1.0 1.5 1.1
1.6 2.4 1.76



Major parts material

Part Name Valve Body Disc Hose Valve Stem
Material

Gray cast iron

Aluminum Alloy

stainless steel

Carbon steel

Cast Iron



Natural rubber

EPDM

Wear rubber

Carton Steel



Mainly structural connection size

Electric control Pinch Valve--Introduced BELLAGJ Type Electric control Pinch Valve--Introduced BELLAGJ Type



Nominal

diameter

L D D1 Z-φ H A B
DN25 145 115 85 4-14 763 460 280
DN32 160 135 100 4-18 828
DN40 180 145 110 4-18 833
DN50 210 165 125 4-18 865
DN65 250 185 145 4-18 875
DN80 300 190 160 4-18 898
DN100 350 215 180 8-18 910
DN125 430 245 210 8-18 925
DN150 500 280 240 8-23 945
DN200 650 335 295 8-23 970
