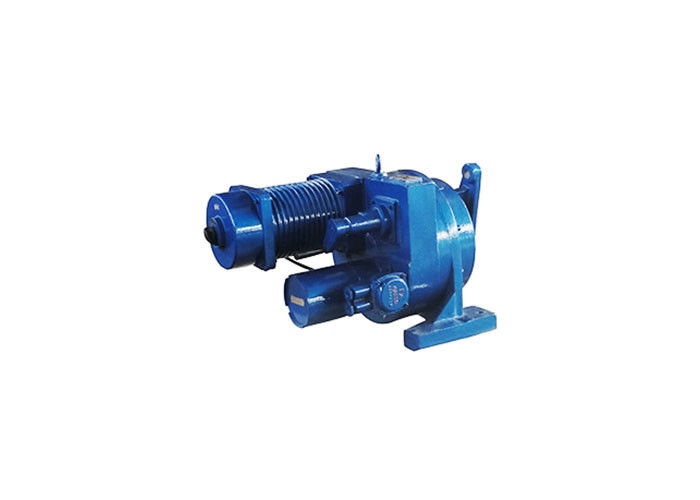

Anti-explosion DKJ Electric Actuator

Anti-explosion DKJ Electric Actuator

Anti-explosion DKJ Electric Actuator

Product Details:

Place of Origin: CHINA
Brand Name: TIANJIN BELL
Certification: ISO9001 CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 PIECE
Price: USD 100-900 PIECE
Packaging Details: plywood case
Delivery Time: 10-20 days
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 1000 pieces per month
Contact Now
Detailed Product Description
Input Signal: 4--20mA DC Input Channel Resistance: 250 Ohm
The Number Of Input Channels: 1 Basic Error: 1%, 2.5%
Backlash: 1.5% Dead Zone: 0.5%--3% Continuous Adjustable (could Adjust According To System Requirements)
Damping Characteristics: No Swing Power Supply Voltage: Three-phase 380V ~ 50Hz Or Single-phase 220V ~ 50Hz
Working Environment: Temperature : Integral -10-- + 55 Degrees Celsius, Discrete -25-- + 70 Degrees Celsius. Humidity: ≤85%, Ambient Air Does Not Contain Corrosive Properties Protection Class: According To IEC145 IP65 (waterproof And Dustproof ,discrete GAMX Except Indoor Installation), Bus Type, Intelligent IP67.

Introduction:
DKJ quarter-turn electric actuator and DKZ linear-turn electric actuator are the earliest and the only products in our country. The products pool the wisdom of all the experts in our country during the planned economy time.
Our engineers devoted themselves to this project in the early period, made great contributions to push the DKJ and DKZ series to the market and laid the foundation of enterprise's professional development. It is used in large-scale state-owned enterprise with simple-structure and economical and practical merits in the early period.
With the development of modern industrialization and computer management, we make two outstanding improvements compared with the previous DKJ, DKZ series nowadays
1.We have already produced the electric intelligent type product, outdoor type, anti-explosion type and other improved products which are directly controlled by computer.
2.The steering circuit is fixed into a small plastic casing (generally called module), forming the PNP type that is easy to maintain. It functions as the higher regulating precision and longer using life.
Our actuators have the most standard outlook size, which have played a key role in reconstructing projects of many large-scale enterprises.

Principle of work

The DKJ, DKZ series electric actuator are the terminal control device of industrial process survey and the control system, changing the system’s control signal into angular displacement, linear displacement of output axle, the position of valve and other regulating units. The main purpose is to enable the controlled medium to work well under the regulated system conditions.
The electric actuator is divided into the proportion type and integral type according to the controlling type. The proportion actuator is made up of electric servo amplifier and integral type actuator that can compare systematic control signal with the feedback signal (closed-loop control) of output axis so as to change the travel route and has proportion relations with the output axis signal. The integral actuator consists of servo motor, reducer and position transmitter. Coordinating with motor operator, it can control valve or other regulating units from long distant.

Common series electric actuator model number and outlook dimensional drawing

DKJ Quarter-turn actuator(outdoor, electric formula, explosion-proof and explosion-proof electric formula see the table.)

Type

0—10mA

Type

4—20mA

Torque

Travel time

Second/90degree

DKJ-210 DKJ-2100 100Nm 25
DKJ-310 DKJ-3100 250Nm
DKJ-410 DKJ-4100 600Nm
DKJ-510 DKJ-5100 1600Nm
DKJ-610A DKJ-6100A 2500Nm 40
DKJ-610 DKJ-6100 4000Nm 60
DKJ-710 DKJ-7100 6000Nm 100



Main technical parameters
DKJ, DKZ series electric actuator are manufactured according to the PRC’s GB11922-89 standard
1. Input signal: electric type: 4--20mA DC or 0--10mA DC; common type: on-off signal
2. Input resistance: 250 Ω or 200 Ω
3. Input passage:common type – 3 amplifiers; electric type -1 amplifier
4. Basic error: 2.5%
5. Deviation: ≤1.5%
6. Deadline: ≤3%
7. Damping characteristic: ≤ three and half period
8. Power supply: single-phase 220V 50Hz,three-phase 380V 50Hz
9. Operating environment: temperature: -10°C-- +55°C
Humidity ≤95% the surrounding air does not include the corrosive elements.
