PPR Capillary Tube Mat for Heating or Cooling RD-10MM/20MM/40MM

PPR Capillary Tube Mat for Heating or Cooling RD-10MM/20MM/40MM

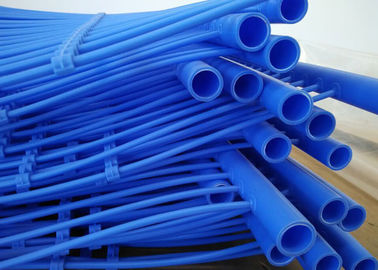

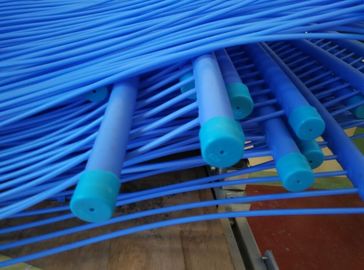

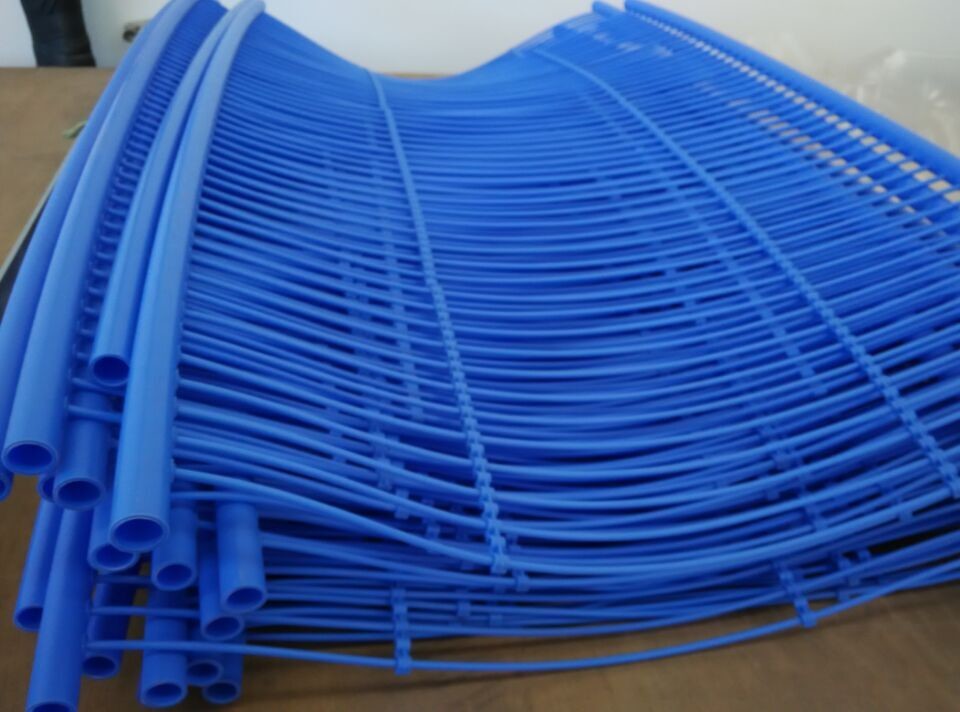

    • PPR Capillary Tube Mat for Heating or Cooling RD-10MM/20MM/40MM
    • PPR Capillary Tube Mat for Heating or Cooling RD-10MM/20MM/40MM
    • PPR Capillary Tube Mat for Heating or Cooling RD-10MM/20MM/40MM
    • PPR Capillary Tube Mat for Heating or Cooling RD-10MM/20MM/40MM
  • PPR Capillary Tube Mat for Heating or Cooling RD-10MM/20MM/40MM

    Product Details:

    Place of Origin: TIANJIN CHINA
    Brand Name: BELL
    Certification: ISO9001 CE
    Model Number: RD-10/RD-20/RD-40

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 square meters
    Price: USD 9 -30 square meter
    Packaging Details: carton box
    Delivery Time: 3-20 days
    Payment Terms: T/T, L/C ,Paypal ,Western Union, D/A, D/P
    Supply Ability: 5000square meters per day
    Contact Now
    Detailed Product Description
    Material: PP-R Capillary Tube Space: 10mm, 20mm, 40mm, Etc
    Color: Blue Function: For Heating Or Cooling

    Capillary Tube Mat





    Introduction:



    Capillary Tube Mat is a kind of terminal material which applied in building heating and cooling. It made of Polymer polypropylene PPR, with the advantages of long service life and recycled recycling. Its production and application technology is in a leading international level in the field of building energy efficiency.



    Capillary tube mats are used mainly in radiation systems like cooling & heating ceilings in property construction, convective cooling shafts and cooler columns, as flooring and wall systems for heating and cooling in living houses(primarily single-family homes) as well as ground collectors in conjunction with heat pumps.




    Technical Specifications:



    Product Capillary Tube Mat
    Material PP-R
    Main tube size 20*2.0mm
    Capillary tube size 4.3*0.8mm
    Capillary tube space 10mm, 20mm, 40mm, Z20mm, Z40mm
    Length 600mm~ 12000mm
    Width 480mm, 500mm, 550mm, 1000mm
    Weight 290~870 g/m2
    Water volume 0.16~0.57 l/ m2
    Fully water volume 320~1440 g/m2
    Connection method

    both sides hot melt welding

    same one side welding.

    Testing Pressure 20 bar
    Working pressure 6 bar





    Model Selection:



    PPR Capillary Tube Mat for Heating or Cooling RD-10MM/20MM/40MM PPR Capillary Tube Mat for Heating or Cooling RD-10MM/20MM/40MM



    Model: RD-10

    Material: PP-R

    Main tube: 20*2.0mm

    Capillary tube: 4.3*0.8mm

    Tube space(A): 10mm

    Length(L): 600-12000mm

    Width(B): ≤1000mm

    Weight: 840g/sq.m

    Total water volume:1480g/ sq.m





    Model: RD-Z5

    Material: PP-R

    Main tube: 20*2.0mm

    Capillary tube: 4.3*0.8mm

    Tube space(A): 5mm

    Length(L): 600-12000mm

    Width(B): ≤1000mm

    Weight: 870g/ sq.m

    Total water volume:1440g/ sq.m





    Model: RD-20

    Material: PP-R

    Main tube: 20*2.0mm

    Capillary tube: 4.3*0.8mm

    Tube space(A): 20mm

    Length(L): 600-12000mm

    Width(B): ≤1000mm

    Weight:430g/ sq.m

    Total water volume:750g/ sq.m





    Model: RD-Z10

    Material: PP-R

    Main tube: 20*2.0mm

    Capillary tube: 4.3*0.8mm

    Tube space(A): 10mm

    Length(L): 600-12000mm

    Width(B): ≤1000mm

    Weight:430g/ sq.m

    Total water volume:750g/ sq.m





    Model: RD-40

    Material: PP-R

    Main tube: 20*2.0mm

    Capillary tube: 4.3*0.8mm

    Tube space(A): 40mm

    Length(L): 600-12000mm

    Width(B): ≤1000mm

    Weight:210g/ sq.m

    Total water volume:320g/sq.m





    Model: RD-Z20

    Material: PP-R

    Main tube: 20*2.0mm

    Capillary tube: 4.3*0.8mm

    Tube space(A): 20mm

    Length(L): 600-12000mm

    Width(B): ≤1000mm

    Weight: 220g/sq.m

    Total water volume:370g/sq.m





    PPR Capillary Tube Mat for Heating or Cooling RD-10MM/20MM/40MM



    Principle of Operation:



    PPR Capillary Tube Mat for Heating or Cooling RD-10MM/20MM/40MM



    Part of the human blood circulation (left) and capillary tube mat with small tube measuring 4.3 x 0.8mm in diameter with tube spacing from 10mm (right). In both cases there is a split of the total mass flow into parallel fluid channels flows. Flow speeds in the arteries and in the capillary tubes are in the same order of magnitude, 0.05 m/s to 0.2 m/s.





    Installation Detail:



    PPR Capillary Tube Mat for Heating or Cooling RD-10MM/20MM/40MM



    Usage: ground mounted, wall mounted, ceiling mounted, energy harvesting, cooling module, gypsum board installation


    Suggestion: When summer cooling: capillary network is best installed on the roof and walls.
    When winter for heating: a variety of installation is advisable: ground, wall, ceiling.



    PPR Capillary Tube Mat for Heating or Cooling RD-10MM/20MM/40MM



    PPR Capillary Tube Mat for Heating or Cooling RD-10MM/20MM/40MM



    FAQ for More Details:



    1. What is the capillary tube mat?

    Capillary tube mats are used mainly in radiation systems like cooling & heating ceilings in property construction, convective cooling shafts and cooler columns, as flooring and wall systems for heating and cooling in living houses(primarily single-family homes) as well as ground collectors in conjunction with heat pumps.



    2. What are the application areas of capillary tube mat?

    The capillary tube system is the solution of choice everywhere where the issue is about providing the user with an optimal, i.e. agreeable, room climate that is beneficial to health. Architectonic issues (space requirement, flexibility, non-visible technology) as well as cost issues also frequently play a decisive role.



    3. What are the advatages of capillary tube mat compared with the traditional heating or cooling system?

    Compared with the traditional heating and cooling system, capillary tube mat is a kind of more efficient, more

    energy-saving, more environmentally friendly, healthy and comfortable and have a longer using life products.



    4. Can capillary tube mat be used with heat pump?

    Yes. The capillary tube mat can be used with ground source heat pump, air source heat pump, water source heat pump, solar energy system, gas furnace and central heating and cooling system.



    5. Is capillary tube mat system energy-saving?

    Yes. In winter, the input water temperature is only 28-32℃, which is much lower than the 45-60℃ of the traditional underfloor heating system. In summer, the input water temperature is only 16-18 ℃ , which is much higher than 5-7 ℃ of the common air conditioners.



    6. Is there condensation phenomenon when it’s used for cooling?

    When used for cooling, there is dew point sensor equipped. When condensation appears, the system will turn off the switch or raise the temperature steadily. And when the condensation disappears, the system will recover to the normal mode.



    7. Is capillary tube mat durable?

    All the capillary tube mats have to pass the pressure test before delivery. And its using life is around 50 years under normal operation conditions, so there’s no other maintenance expense.



    8. Can silting occur in the capillary tube mat system?

    Silting is an after-effect of corrosion in the heating and cooling system. By using only corrosion-resistant materials and by implementing system separation in the capillary tube mat system using a stainless steel heat exchanger, silting is not possible.



    9. Is Capillary Tube Mat Sample Available?

    Yes,Capillary tube mat samples are available in our company. You can contact us directly for sending samples.





    Please feel free to contact me for more details such as installation instructions, package size, prices..
