Place of Origin: | TIANJIN CHINA |
Brand Name: | TIANJIN BELL |
Certification: | ISO9001 CE |

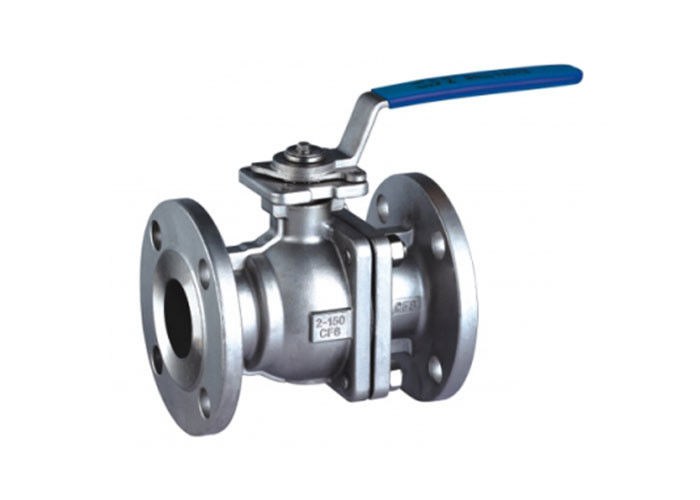

Model Number: | BSAQ |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | USD 50-100 PIECE |
Packaging Details: | PLYWOOD CASE |
Delivery Time: | 5-10 DAYS |
Payment Terms: | T/T L/C |
Supply Ability: | 1000 PIECES PER MONTH |
Place Of Origin: | Tianjin, China (Mainland) | Application: | General |
---|---|---|---|
Material: | Casting Steel / WCB, Carbon Steel, Stainless Steel | Temperature Of Media: | -20℃~350℃ Based On Material |
Pressure: | PN16,25,40;150lb,300lb;10K,20K,etc | Power: | Manual |
Media: | Water,oil,gas, Steam And Some Corrosive Liquid | Port Size: | DN50-700(2"~28") |
Structure: | Ball | Connection Type: | Flange Type |
Connecting Flange: | GB/T9113,JB/T79,ANSI B16.5 B16.47 | Face To Face Dimension: | GB/T12221,API6D,ANSI B16.10 |
Design Standards: | GB/T12237,API6D,ANSI B16.34 | Seal Type: | PTFE / Teflon / PPL / Metal Seal |
Flange Type: | RF, FF,etc | Testing And Inspection: | GB/T9092,API6D,API598 |
Standard Range: | API, ANSI,DIN,BS,JIS,GB,etc | Color: | To Order |
Standard Or Nonstandard: | Standard |
Product Features:
·Handle operation, the valve have lock hole in full open/close position, to ensure that the valve is in the right place.
·O ball valves are usually used as cut-off valves and two type control.
·Its flow is simple and fully forms straight channel when full open,with minimum pressure loss.
·Ball valve rotate 90 ° seated fully open/close fastly. Low friction coefficient and small operating torque.
·Good sealing. A variety of the seat material and wide adaptation.
·Handle operation, the valve has lock hole in its fully open and close position, to ensure the valve is in the right place.
·Specially, it's suitable for high viscosity, suspension occasions, such as pulp fluid.
Spare parts Material
Spare parts | Material | |||
Carbon steel | Stainless steel | |||
GB | ASTM | GB | ASTM | |
Body/Bonet | WCB | A216-WCB | ZG1Cr18Ni9Ti ZG1Cr18Ni12Mo2Ti |
A351-CF8 A351-CF8M A351-CF3 A351-CF3M |
Ball | 2Cr13 1Cr18Ni9 |
A276-304 | ||
Stem | 2Cr13 | 276-410 | 1Cr18Ni9Ti 1Cr18Ni12Mo2Ti |
A276-304;A276-304L A276-316;A276-316L |
Seal ring | PTFE/Nylon/fill the F4 /carbon fiber/2Cr13+STL | |||
Packing/Gasket | PTFE/Asbestos packing/flexible graphite | |||
Nut | 35 | A105-1035 | Stainless steel | |
Double end bolt | 35CrMoA | A193-B7 | Stainless steel |
Dimension
Rating | Nominal diameter, DN | L | d | D | D1 | D2 | b | f | Z-Φdo | H | E |
PN16 | 25 | 150 | 25 | 115 | 85 | 65 | 14 | 2 | 4-14 | 90 | 170 |
32 | 165 | 32 | 135 | 100 | 78 | 16 | 2 | 4-18 | 107 | 200 | |
40 | 180 | 38 | 145 | 110 | 85 | 16 | 3 | 4-18 | 127 | 250 | |
50 | 200 | 51 | 160 | 125 | 100 | 16 | 3 | 4-18 | 140 | 250 | |
65 | 220 | 64 | 180 | 145 | 120 | 18 | 3 | 4-18 | 164 | 350 | |
80 | 250 | 76 | 195 | 160 | 135 | 20 | 3 | 8-18 | 177 | 350 | |
100 | 280 | 102 | 215 | 180 | 155 | 20 | 3 | 8-18 | 206 | 420 | |
125 | 320 | 127 | 245 | 210 | 185 | 22 | 3 | 8-18 | 292 | 700 | |
150 | 360 | 152 | 280 | 240 | 210 | 24 | 3 | 8-23 | 320 | 1000 | |
200 | 400 | 203 | 335 | 295 | 265 | 26 | 3 | 12-23 | 365 | 1300 | |
PN25 | 25 | 150 | 25 | 115 | 85 | 65 | 14 | 2 | 4-14 | 90 | 170 |
32 | 165 | 32 | 135 | 100 | 78 | 16 | 2 | 4-18 | 107 | 200 | |
40 | 180 | 38 | 145 | 110 | 85 | 16 | 3 | 4-18 | 127 | 250 | |
50 | 200 | 51 | 160 | 125 | 100 | 20 | 3 | 4-18 | 140 | 250 | |
65 | 220 | 64 | 180 | 145 | 120 | 22 | 3 | 8-18 | 164 | 350 | |
80 | 250 | 76 | 195 | 160 | 135 | 22 | 3 | 8-18 | 177 | 350 | |
100 | 320 | 102 | 230 | 190 | 160 | 24 | 3 | 8-23 | 206 | 420 | |
125 | 360 | 127 | 270 | 220 | 188 | 28 | 3 | 8-25 | 292 | 700 | |
150 | 400 | 152 | 300 | 250 | 218 | 30 | 3 | 8-25 | 320 | 1000 | |
200 | 550 | 203 | 360 | 310 | 278 | 34 | 3 | 12-25 | 365 | 1300 | |
PN40 | 25 | 165 | 25 | 115 | 85 | 65 | 16 | 2 | 4-14 | 90 | 170 |
32 | 178 | 32 | 135 | 100 | 78 | 18 | 2 | 4-18 | 107 | 200 | |
40 | 190 | 38 | 145 | 110 | 85 | 18 | 3 | 4-18 | 127 | 250 | |
50 | 220 | 51 | 160 | 125 | 100 | 20 | 3 | 4-18 | 140 | 250 | |
65 | 250 | 64 | 180 | 145 | 120 | 22 | 3 | 8-18 | 164 | 350 | |
80 | 280 | 76 | 195 | 160 | 135 | 22 | 3 | 8-18 | 177 | 350 | |
100 | 320 | 102 | 230 | 190 | 160 | 24 | 3 | 8-23 | 206 | 420 | |
125 | 400 | 127 | 270 | 220 | 188 | 28 | 3 | 8-25 | 292 | 700 | |
150 | 400 | 152 | 300 | 250 | 218 | 30 | 3 | 8-25 | 320 | 1000 | |
200 | 550 | 203 | 375 | 320 | 282 | 38 | 3 | 12-30 | 365 | 1300 |
